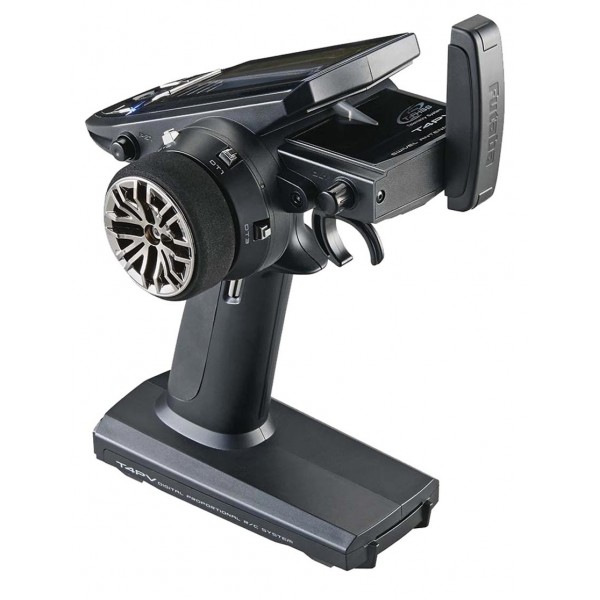

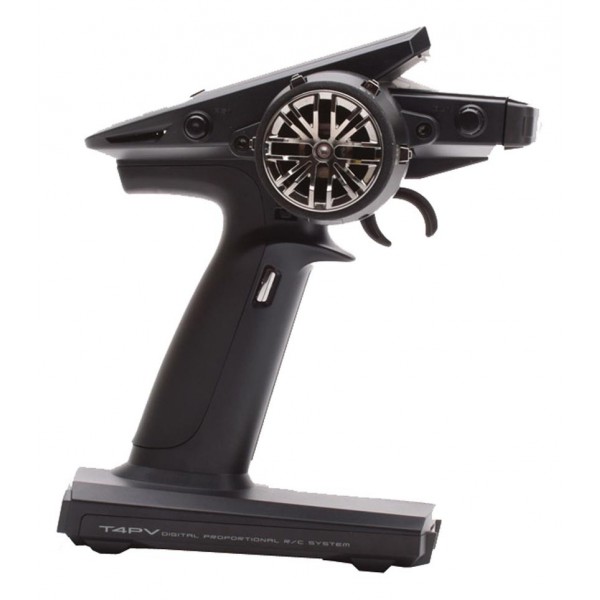

Futaba TX 4PV R304SB Profy Telemetry Radio Trasmitter

Some drivers are born to hit whatever others seem born for racing. This radio was created to bring out the best in each of you.
Using the T-FHSS protocol, the 4PV is able to provide telemetry data for your car, temperature rpm, charge level rx and external while driving. Audible audible alarms via audio jack let you concentrate on driving while everything is under your control.

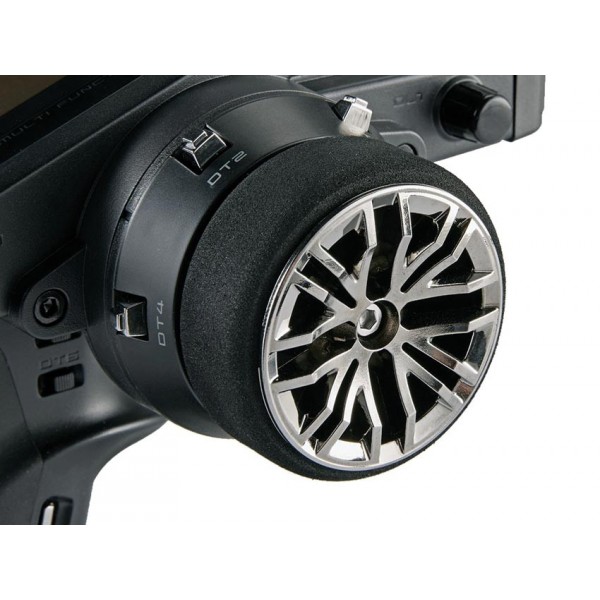

Through the possibility of adjusting the position of the handwheel, the spring tension and with 5 optional accessories, the 4PV offers a complete and ergonomic customization. The radio will become yours alone

The 4PV is compatible with T-FHSS and S-FHSS receivers and can be upgraded via the CIU-2 and CIU-3 interfaces to keep you up to date with the latest Futaba technological innovations.

Specifications 4PV

• T-FHSS and S-FHSS protocols

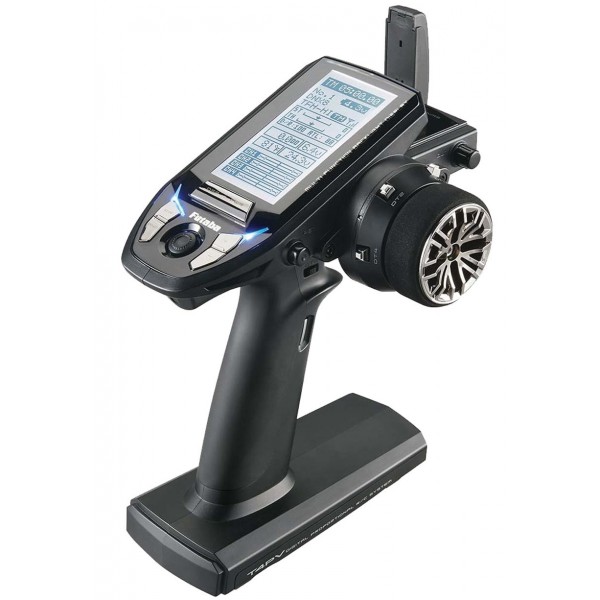

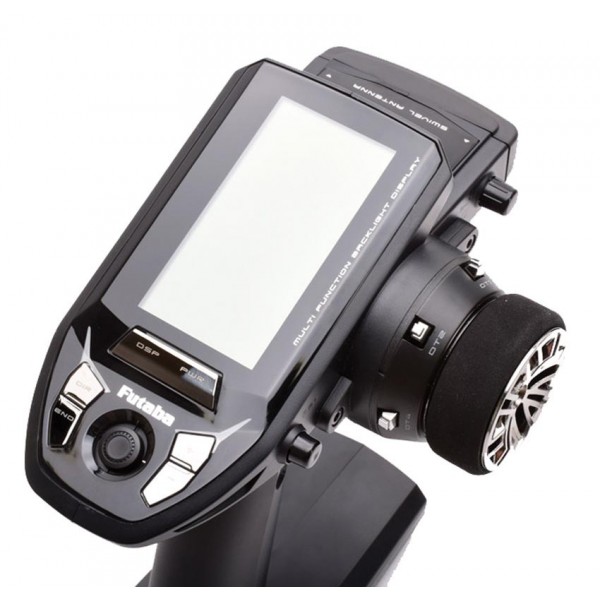

• Large backlit LCD screen
• Telemetry functions with logging capabilities and audible alerts
• Six digital trims
• 40-model memory
• 10-character model naming
• S.Bus/S.Bus2 servo programming
• Direct Model Select
• Model Copy/Model Clear
• Alarm tone adjustments
• Fail Safe
• Dial trim step select
• Data transfer/copy
• Firmware updatable via CIU-2 or CIU-3
• Compatible with 2S LiFe batteries, NiMHs, dry cells and other battery options.

Regolazione Servocomandi :

• Digital steering trim
• Digital steering trim rate
• Steering reverse
• Steering dual rates
• Steering EPA (End Point Adjustments)
• Steering expo
• Steering sub trim
• Digital throttle trim rate
• Throttle reverse
• Throttle EPA (End Point Adjustments)
• Throttle ATL
• Mechanical ATL
• Throttle expo
• Throttle sub trim
• ABS
• Idle-up
• Throttle acceleration
• Throttle preset (hold)
• Throttle servo speed

Funzioni Miscelazione

• Programmable mixing
• 4WS mixing
• Brake mixing
• Gyro mixing
• Steering mixing
• Throttle mixing

Programmazione Canale 3 & 4

• CH3 servo reverse
• CH3 step
• CH3 EPA (End Point Adjustments)
• CH3 sub trim
• CH3 brake
• CH3 ABS
• CH4 servo reverse
• CH4 EPA (End Point Adjustments)
• CH4 sub trim
• CH4 brake
• CH4 ABS

Funzioni Timer

• Up timer
• Down timer
• Lap timer
• Lap memory (up to 100 laps & total)
