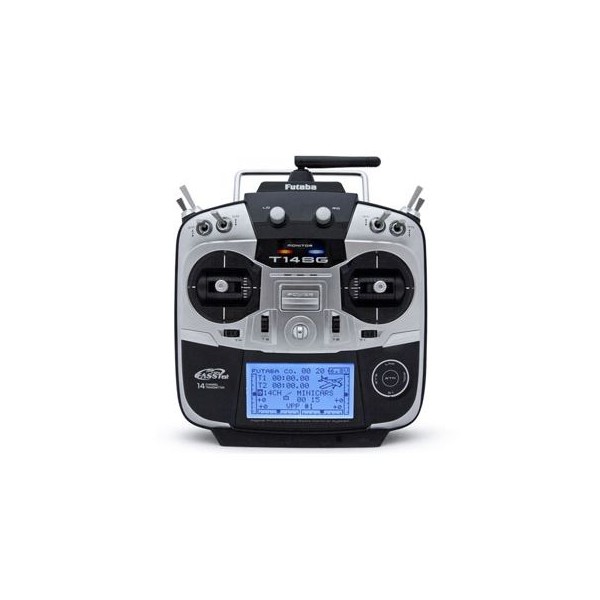

Futaba TX 14SG R7008SB 2,4G HX M2 Radio Trasmitter

FASSTEST Technology Flybarless Gyro. Programmable S.Bus Telemetry

The 14 SG has all this and much more

Futaba proudly announces the 14SG, provided with the revolutionary FASSTEST protocol, it is also compatible with the FASST and S-FHSS protocols thus making it possible to use each Futaba receiver

The 14SG can transmit and receive telemetry data. Install sensors (sold separately) to monitor flight data and receive alarms in flight.

The innovations do not end here. The incredibly solid construction in the Futaba style is combined with an ergonomic design and the addition of rubber grips that maximize comfort.

Specifications:

•     Channels: 12 proportional, 2 switched
•     Compatible with FASSTest, FASST and S-FHSS protocols
•     FASSTest telemetry compatible with Futaba telemetry sensors (sold separately)
•     Free user-updatable software
•     30-model memory
•     10-character user naming
•     10-character model naming
•     Airplane, helicopter and glider programming
•     Large, 1.75 x 3 in backlit LCD screen with 128 x 64 resolution
•     SensorTouch programming
•     Compatible with secure digital memory cards for external storage of model setups and software updates (32MB-2GB or HC (High-Capacity) 4GB-32GB)
•     Left and right assignable slider switches
•     Two assignable rotary knobs
•     Six assignable three-position switches
•     One assignable momentary two-position switch
•     One assignable two-position switch
•     Comfortable rubber grips on the sides and back
•     Wide top switch spacing
•     Adjustable stick tension
•     Dual ball bearing gimbals
•     4 vibration warning types
•     Home / Exit; User Menu / Servo Monitor buttons
•     Audio earphone jack (for telemetry alarms
•     6V 1800mAh NiMH battery pack
•     User stick calibration
•     Trainer system
•     Servo speed adjust
•     5 programmable mixes
•     V-tail, Ailvator, winglet, motor mixing
•     Trim mix
•     Logic switch (condition switch only)
•     Internal programmer for S.Bus servos
•     User menu
•     Servo monitor (neutral and moving tests)
•     2 count up / countdown timers
•     Integral timer
•     Model timer
•     Quick model select

Programmazione aereo:

• 7 different wing types
• 3 different tail types
• 2 different rudder types
• Flap setting menu
• Differential ailerons
• Aileron to camber flap mixing
• Aileron to brake flap mixing
• Aileron to rudder mixing
• Rudder to aileron mixing
• Rudder to elevator mixing
• Camber mixing
• Elevator to camber mixing
• Camber flap to elevator mixing
• Snap roll mixing
• Airbrake mixing
• V-Tail mixing
• Ailvator
• Winglet
• Motor mixing
• Fuel mixture mixing
• Gyro mixing
• Throttle curve (5-point)
• Pitch curve (5-point)
• Idle down

Programmazione Heli

• 6 swash plate types
• Pitch/throttle curves (5-point)
• Throttle hold
• Swash mix
• Throttle mix
• Pitch to rudder mixing
• Fuel mixture
• Gyro (Flybarless support)
• Governor (700-3500 rpm)
• Hover pitch
• Hover throttle
• High/low pitch
• Swash AFR
• Swash setting (mixing rate, linkage compensation, speed compensation
• Swash ring (electronic)
• Throttle cut

Programmazione veleggiatori

• 11 different wing types
• 3 different tail types
• 2 different rudder types
• Flap setting menu
• Differential ailerons
• Aileron to camber flap mixing
• Aileron to brake flap mixing
• Aileron to rudder mixing
• Rudder to aileron mixing
• Rudder to elevator mixing
• Camber mixing
• Elevator to camber mixing
• Camber flap to elevator mixing
• Butterfly mixing
• Butterfly to elevator mixing
