The Ultimate in 4X4 Short Course Trucks

Experience the pinnacle of short course truck performance with the Slash 4X4 Ultimate. Fully loaded out of the box, the Slash Ultimate features brutal Velineon® brushless power and Traxxas Stability Management™ (TSM) with a high-speed metal gear servo. Carve corners like a pro thanks to the low-CG chassis, installed sway bars, and ultra-smooth blue PTFE-coated aluminum GTR shocks. Slash 4X4 Ultimate packs a full complement of aluminum hop-up parts and performance accessories for added strength and show-stopping looks. Slash 4X4 Ultimate arrives fully assembled with factory-installed telemetry sensors and a Wireless Link equipped TQi™ 2.4GHz radio system. Simply add the battery of your choice (sold separately) and you’re ready for intense tire-scorching action.

QUICK FEATURES ON SLASH 4X4 ULTIMATE:

• NEW High-volume, blue PTFE-coated aluminum GTR shocks
• NEW High-speed metal gear servo (#2075R)
• NEW Upgraded Extreme-Duty driveshafts
• NEW Heavy-duty suspension arms

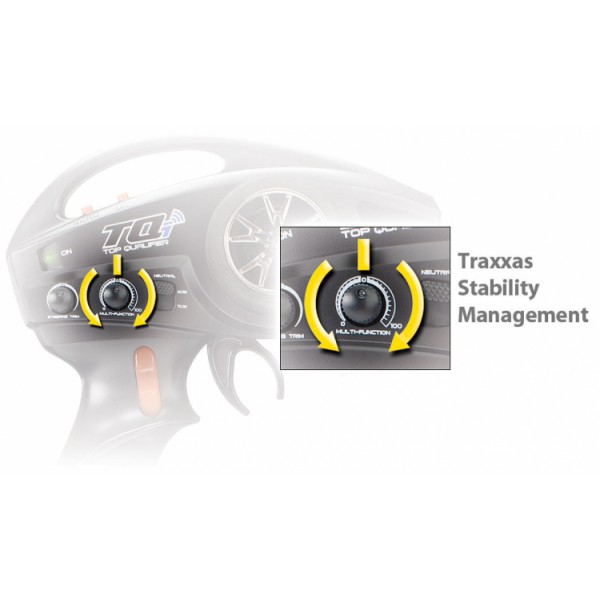

• Traxxas Stability Management (TSM)
• Performance-optimized dark charcoal gray low-CG chassis
• TQi 2.4GHz high output radio system with Traxxas Link Wireless Module™
• Factory installed telemetry sensors
• Telemetry-ready 5-channel 2.4GHz micro receiver
• ProGraphix™ painted body
• Blue-anodized 6061-T6 aluminum C-hubs
• Blue-anodized 6061-T6 aluminum steering blocks
• Blue-anodized 6061-T6 aluminum rear hub carriers
• Blue-anodized 6061-T6 aluminum axle nuts
• Adjustable front and rear sway bars
• Included optional extra-stiff sway bar set

SLASH 4X4 ULTIMATE SPECS:

• Length: 568mm
• Front Track: 296mm
• Rear Track: 296mm
• Center Ground Clearance: 47mm
• Weight: 2.28kg
• Height (overall): 193mm
• Wheelbase: 324mm
• Shocks: GTR threaded aluminum-body with titanium-nitride shafts
• Shock Length: GTR Long (front), XX Long (rear)
• Tires: 2.2/3.0", S1 compound, pre-glued with foam inserts
• Tire Diameter: 109.5mm (front and rear)
• Wheels (front/rear): 2.2/3.0" Split-Spoke, Black Chrome
• Wheel Diameter: 2.2 Inches (56mm) Outer / 3.0 Inches (76mm) Inner
• Speed Control Type: VXL-3s™ Electronic Speed Control
• Motor (electric): Velineon® 3500 Brushless
• Overall Drive Ratio: 11.82 (stock, out-of-box)
• Differential Type: Hardened steel bevel, sealed, limited slip
• Gear Pitch: 32
• Chassis Structure/Material: Molded tub / nylon composite
• Drive System: Shaft-driven, direct drive 4WD
• Steering: Dual-bellcrank with integrated servo saver
• Radio System: TQi 2.4 GHz radio system with Traxxas Stability Management®
• Body: ProGraphix® pre-painted
• Top Speed: 96+kph*
• Battery Tray Dimensions:** 165 x 49.5 x 23/25mm
• Required Items: Traxxas battery pack, Traxxas iD charger, 4 "AA" batteries (for transmitter)

*With optional gearing and 3S LiPo battery (items sold separately).
**Battery expansion kit available

VXL-3s WATERPROOF ESC SPECIFICATIONS

• Input Voltage: NiMH 4-9 Cells (4.8 to 10.8 Volts DC) / LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
• Case Size: W39 x D55 x H33 mm
• Weight: 90 gr
• Motor Limit (Brushless): No motor limit
• On Resistance Forward: 0.00075 Ohms
• On Resistance Reverse: 0.00075 Ohms
• BEC Voltage: 6.0 V
• BEC Current: 2.5A
• Power Wire: 12-Gauge Maxx® Cable
• Input Harness Wire: 26 Gauge / 100mm
• Low Voltage Detection: 2-Stage indicators, switchable (on or off)
• Thermal Protection: 2-Stage thermal shutdown
• Single-Button Setup: Yes, Traxxas EZ-Set®
• Battery Input Connector : Traxxas High-Current Connector
• Motor Types : Brushless
• Ports: RX Input, auxiliary fan

Profile selection:

• Sport Mode: 100% FWD, 100% BRAKES, 100% REV
• Race Mode: 100% FWD, 100% BRAKES, NO REV
• Training Mode:* 50% FWD, 100% BRAKES, 50% REV
