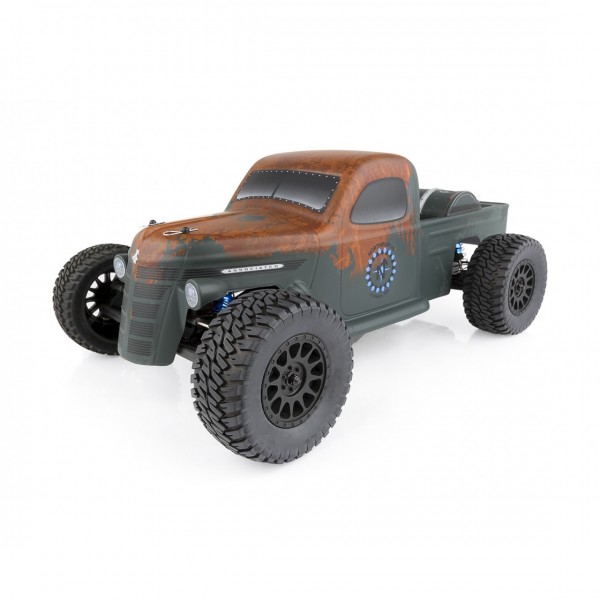

Team Associated Trophy Rat RTR

Trophy Rat Ready-To-Run

Team Associateds Replica from Northrup Fabrications Trophy Rat builds on the 9x ROAR Short Course Nationals winning truck.

Overview

Originally a 1937 International, the 1: 1 Trophy Council devoured over 1,500 working hours from the first concept to completion. The goal was to find the perfect mix between Trophy Truck and Rat Rod, which is also powered by an LS6 Corvette engine and can be used as a daily driver, for the King of the Hammers or a few quick laps on the racetrack.

 Team Associateds Replica from Northrup Fabrications Trophy Rat builds on the 9x ROAR Short Course Nationals winning truck. So the Trophy Rat is ready for everything: show and racing.

The truck comes assembled ready to drive and comes standard with a water-protected high power Reedy brushless controller as well as a 3300 kV brushless motor and a 2.4 GHz remote control system with the BRAND NEW DVC (Dynamic Vehicle Control) receiver with built-in and adjustable gyro system for perfect vehicle control even in difficult terrain ensures. A Reedy digital steering servo and LED lights at the front and rear complete the Trophy Rat package.

The chassis received an upgrade in the form of adjustable aluminum V2 12mm big bore shock absorbers. The transmission is equipped with a sealed heavy-duty bevel gear differential and 81mm CVA drive shafts ensure excellent traction. Hexagon rim drivers and realistic off-road tires and rims keep the truck safely on the ground.

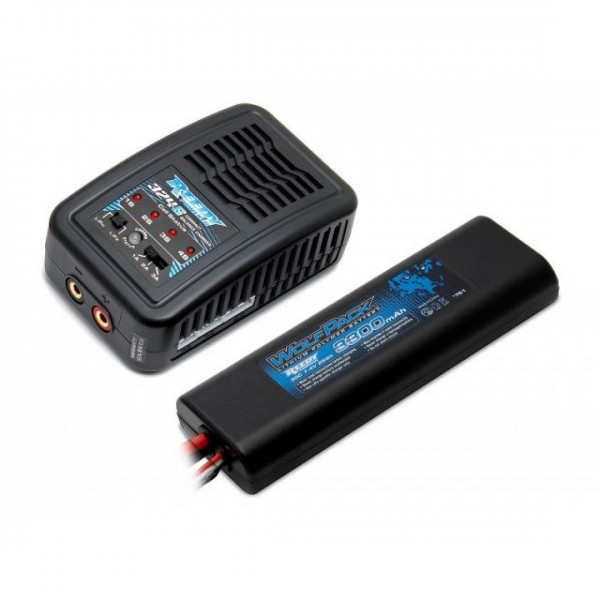

# 70019C Trophy RAR RTR Brushless LiPo Combo contains a Reedy Compact Balance charger and a Reedy 7.4V LiPo battery with T-plug.

Details:

· Based on the 9x ROAR National Champion Short Course Truck platform

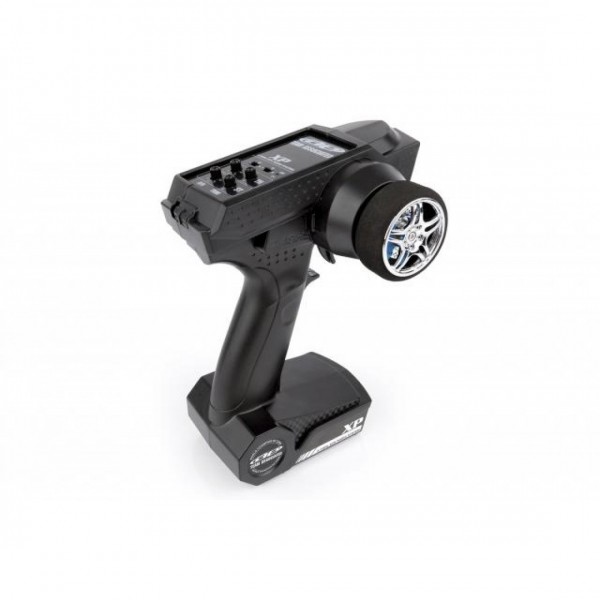

· 2.4GHz 2-channel radio control system with new DVC (Dynamic Vehicle Control) receiver, with built-in, adjustable gyro system

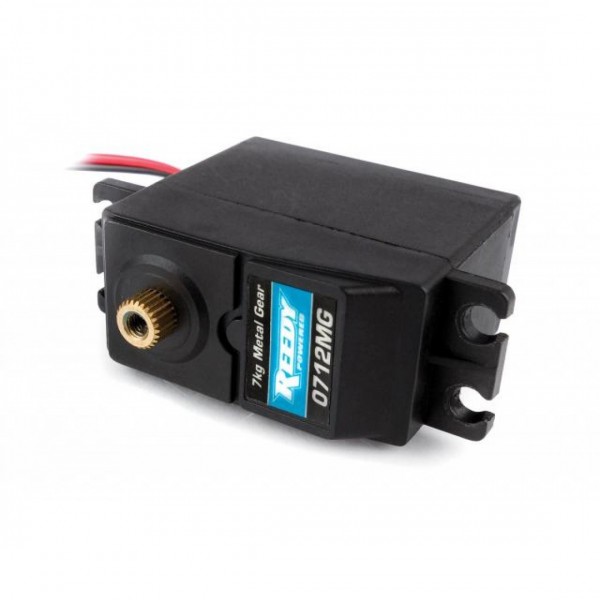

· High-torque metal gear servo with servo acid

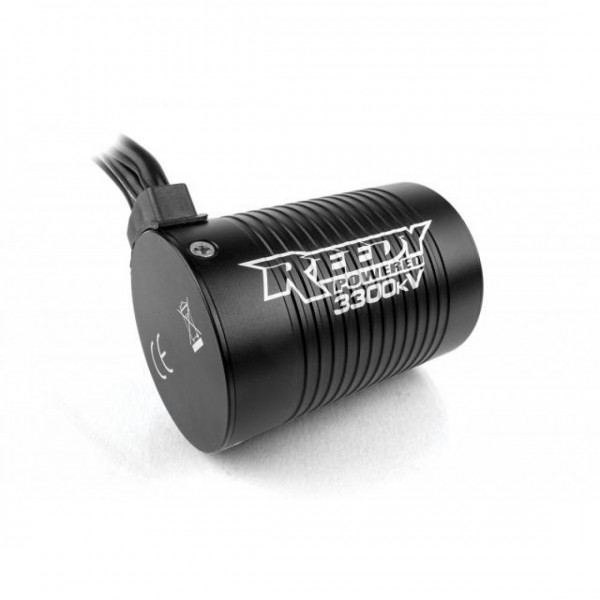

· Powerful Reedy 3000kV brushless motor

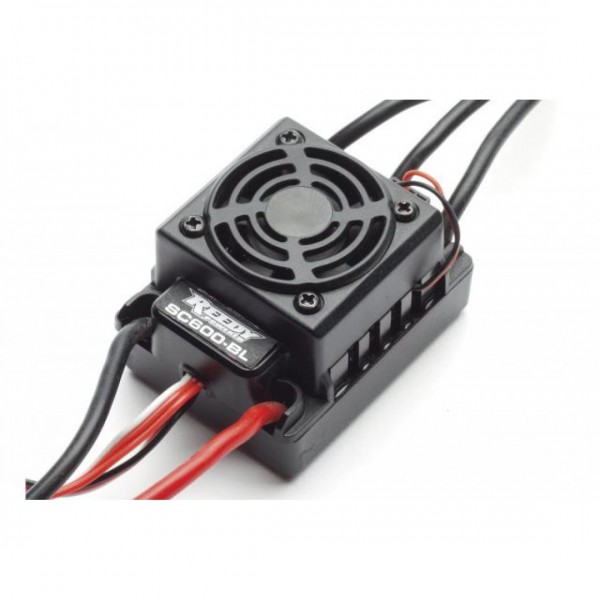

· Water-protected high power reedy brushless speed controller with T-connector and LiPo undervoltage protection

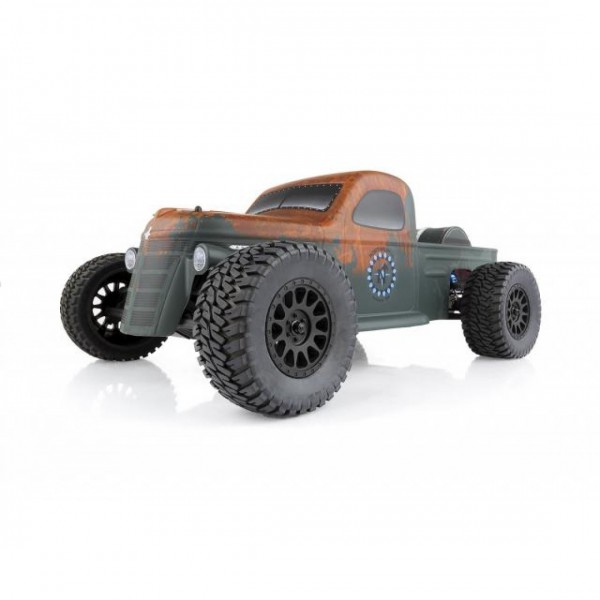

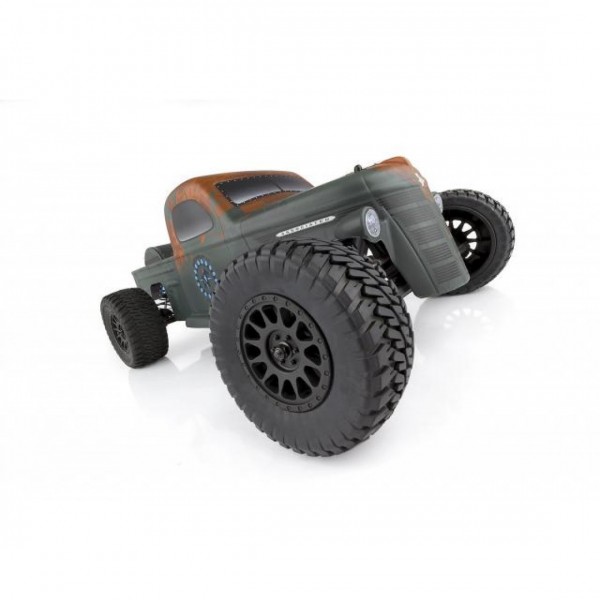

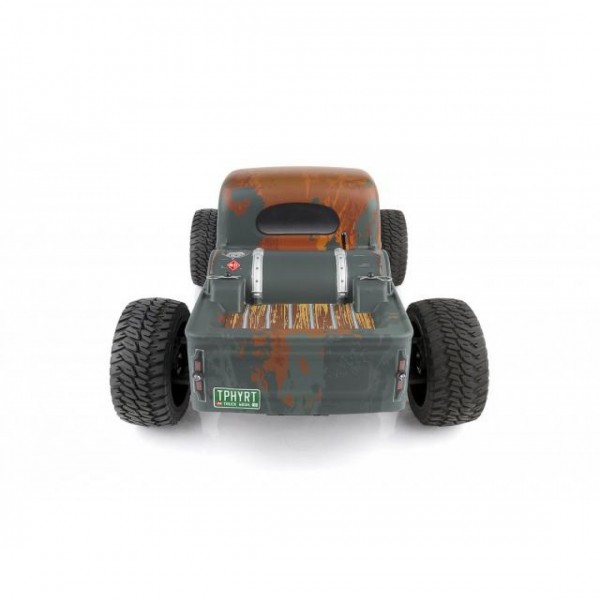

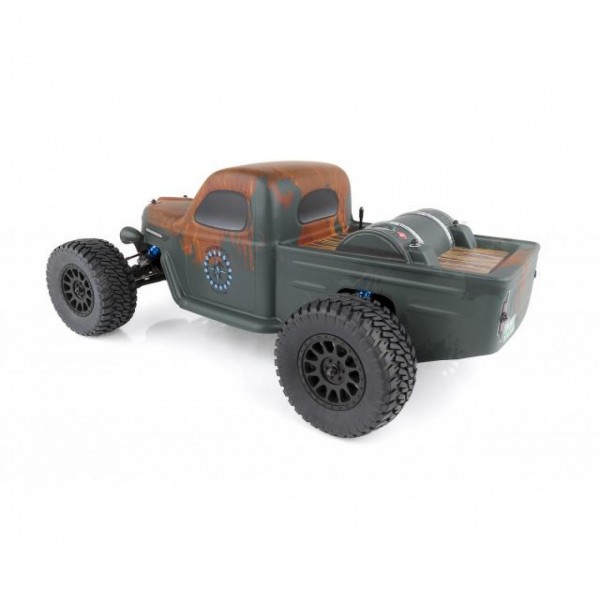

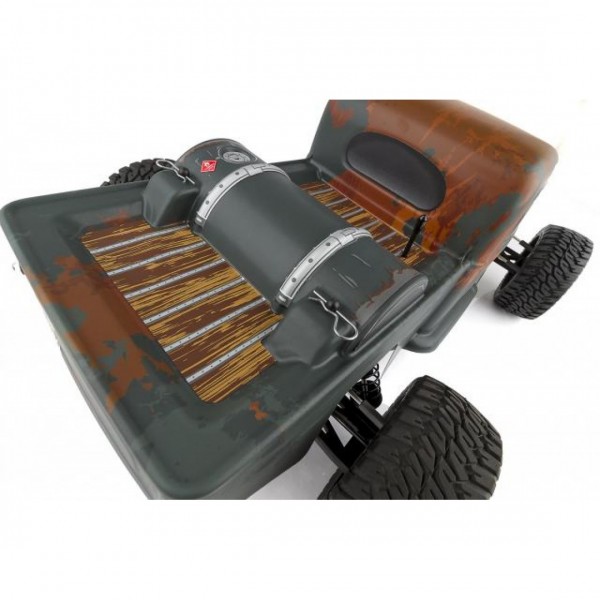

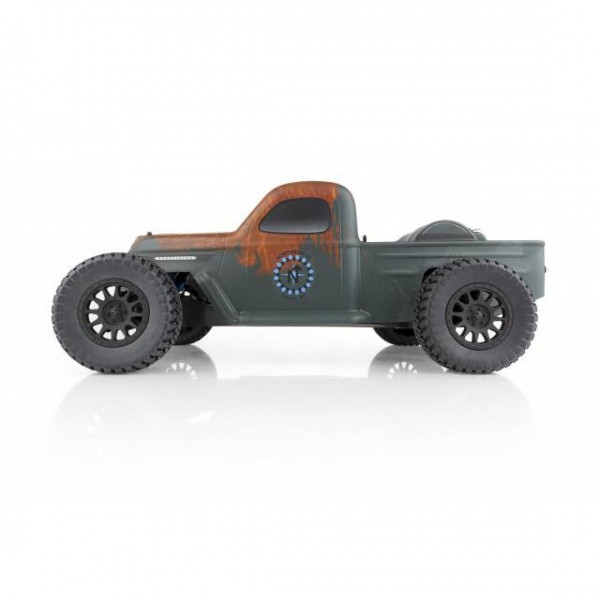

· Realistic Trophy Rat body based on Northrop Fabrications? Trophy Rat?

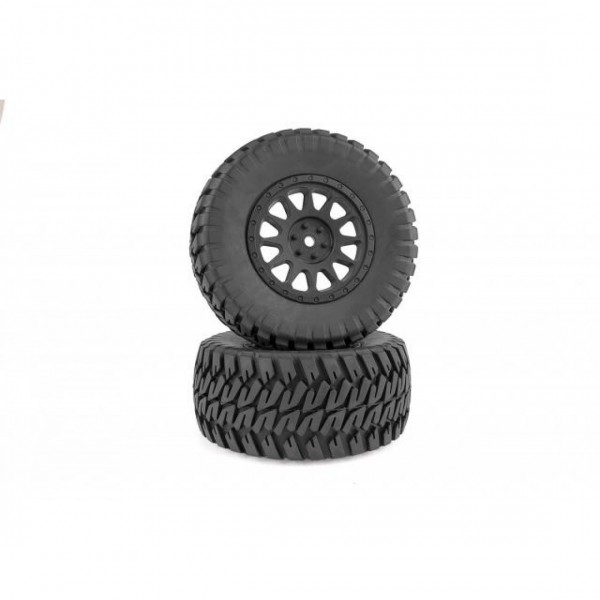

· Realistic Method rims with 12mm wheel drivers

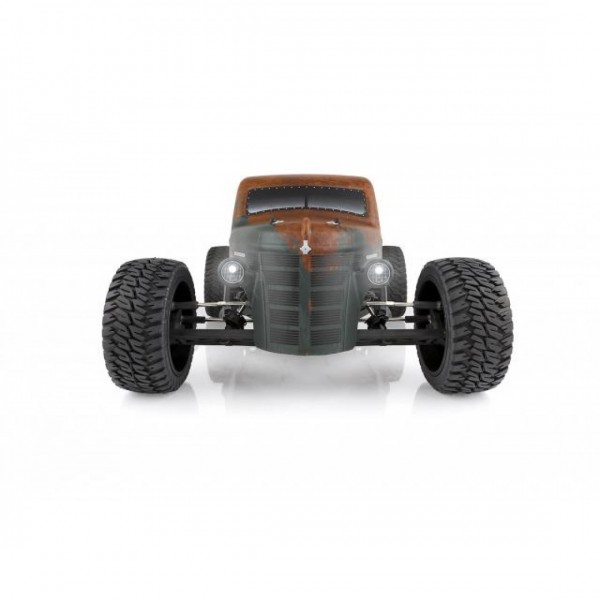

· Four integrated LEDs, two at the front, two at the rear

· Water-protected receiver box

· Light and durable aluminum top shaft

· Injected low center of gravity chassis with Velcro battery holder for NiMH and 2S / 3S LiPo batteries

· Metric screws

· 14 rubber-sealed precision ball bearings

· Durable body bracket

· Rear CVA drive shafts for high reliability

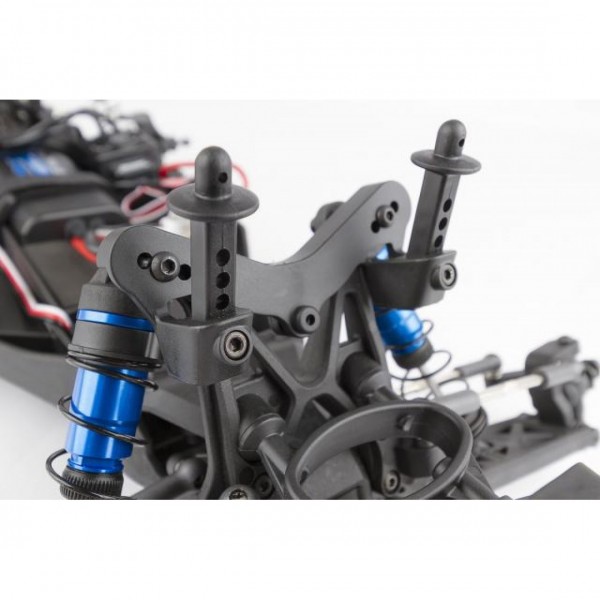

· Aluminum 12mm big bore shock absorber

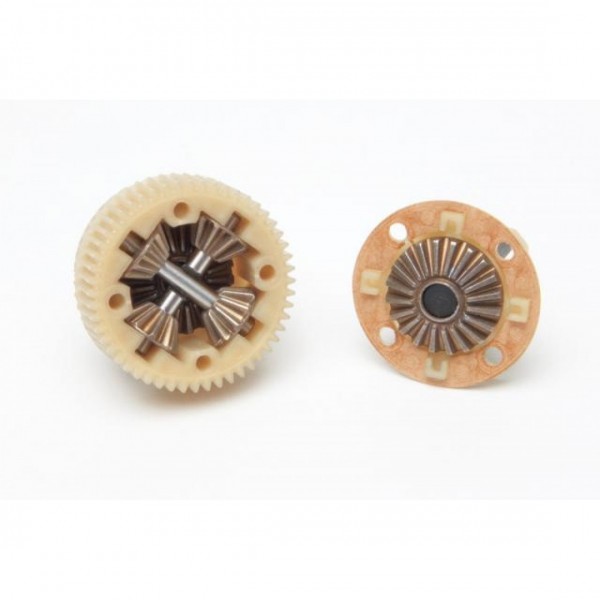

· 2.6: 1 gearbox with sealed bevel gear differential and adjustable V2 slip clutch

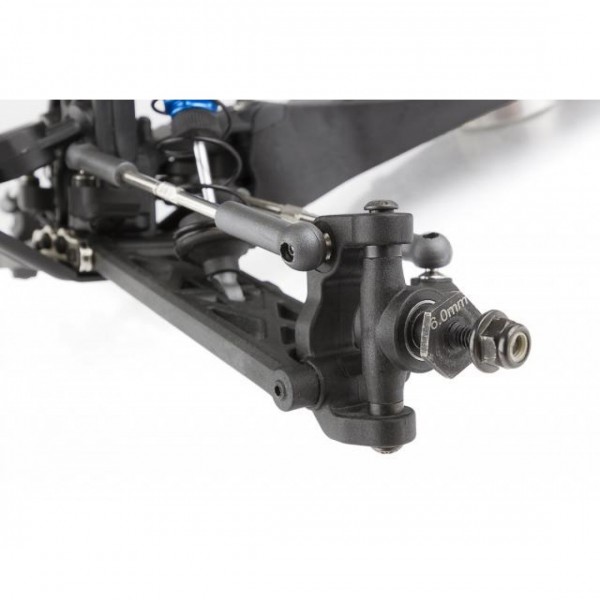

· Durable steel tie rods for adjustable camber front and rear

· Adjustable chassis geometry

· Vertical ball heads for quick roll center adjustment

· Many factory team tuning parts available

# 70019C Trophy RAR RTR Brushless LiPo Combo contains a Reedy Compact Balance charger and a Reedy 7.4V LiPo battery with T-plug.

Specifications

Vehicle specifications

Drive:
electrical

Surface:
terrain

Body type:
Truck

Scale:
1:10

Prefabrication:
preassembled *

Length:
481mm

Width:
282mm

Wheelbase:
322mm

Weight:
1834g

Powertrain:
2WD

* This vehicle is fully assembled and ready-to-run. Some models may need a battery and / or a suitable charger.

Required for completion

# 70019 and 70019C: Four AA batteries (# 302 Reedy AA Alkaline) for the transmitter

# 70019: NiMH or LiPo battery with T-plug (# 724 Reedy 7-cell WolfPack or # 751 Reedy WolfPack LiPo recommended)

# 70019: Charger suitable for the selected battery (# 27201 Reedy Balance Charger - perfect for LiPo / LiFe - recommended)
