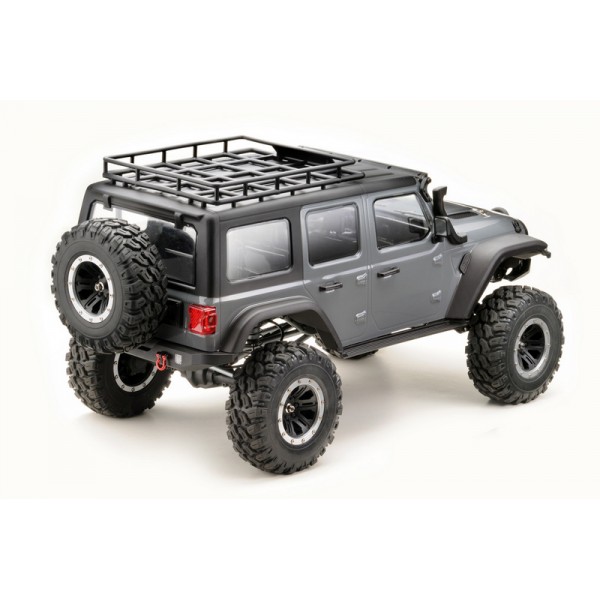

Absima Yucatan 1 /8 Scaler 4x4 RTR Dark Gray Maximize

Absima Yucatan 1 /8 Scaler 4x4 RTR Dark Gray

Absima Yucatan 1 /8 Scaler 4x4 RTR Dark Gray

More details


p 13003

Availability: Available

You can purchase this product in installments with Consel. Click here for more information.

80 A programmable Hobbywing speed controller

  •          2-speed gearbox
  •          Differential lock front and rear (independently)
  •          Front / rear lightning
  •          Axes of the portal
  •          25kg steering servo with metal gears
  •          2-3S * suitable LiPo (note the size of the battery compartment)

     +30 km / h (in 3S mode)

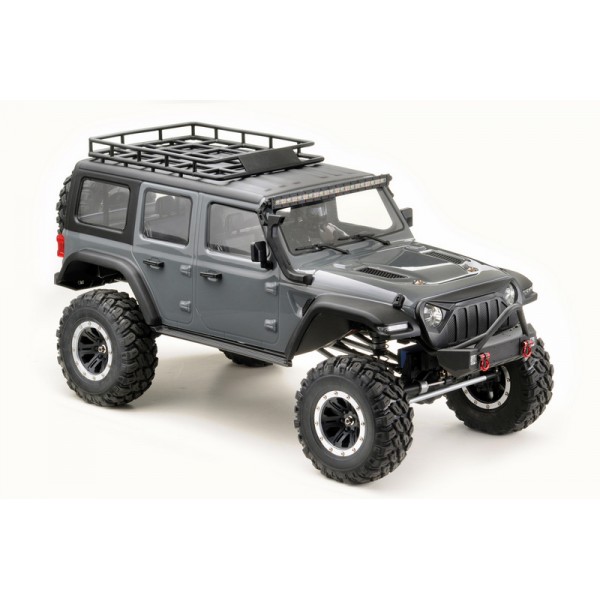

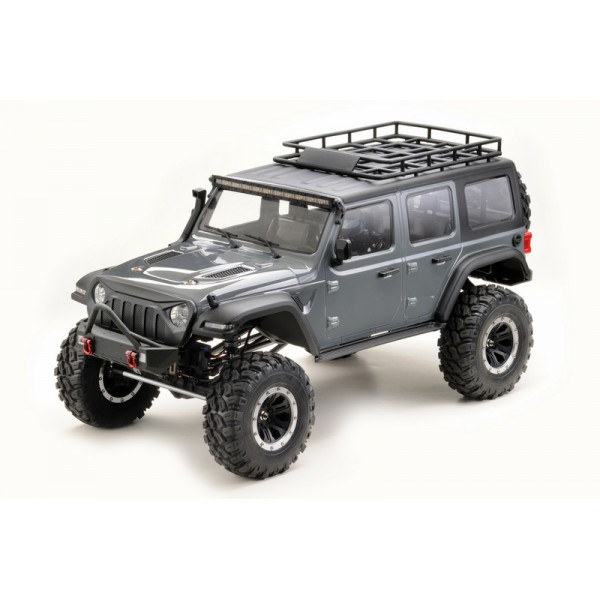

The Yucatan is a high-end 1: 8 scale "Ready-to-Run" scaler crawler that is based on the successful ABSIMA CR3.4 chassis. All the features that made its smaller 1/10 siblings (Sherpa, Khamba) so successful have been adopted. Thanks to the 1: 8 chassis, even more extreme maneuvers are possible and thanks to the size of the bodywork, the details could be emphasized even better, which gives the vehicle a beautiful driving image.

Additionally, there is an 80A speed controller from Hobbywing which is fully programmable (optional program box 2110060). In combination with the larger and more powerful 775 engine, the vehicle reaches a top speed of over 30km / h in 3S LiPo mode. So, not only the obstacle, but also the way in which the goal is there.

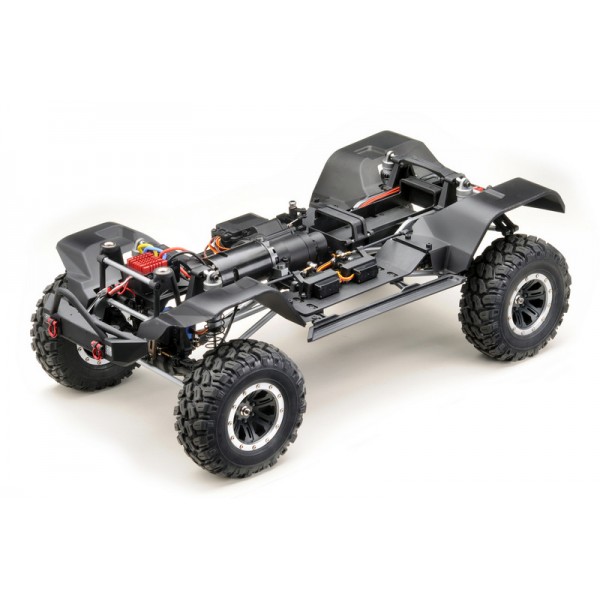

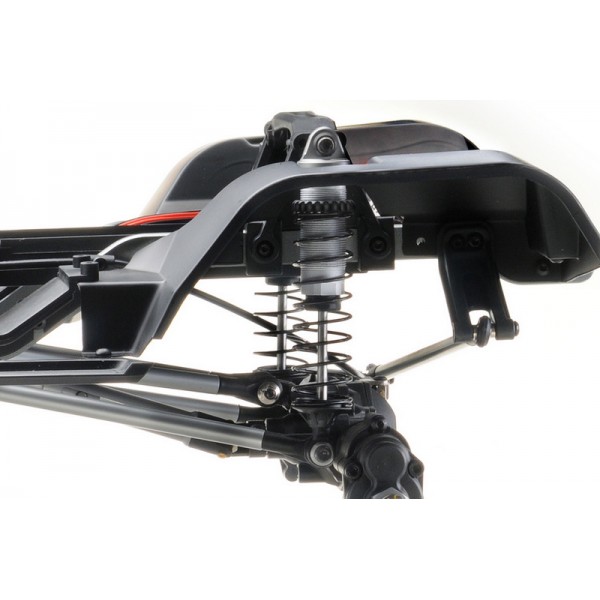

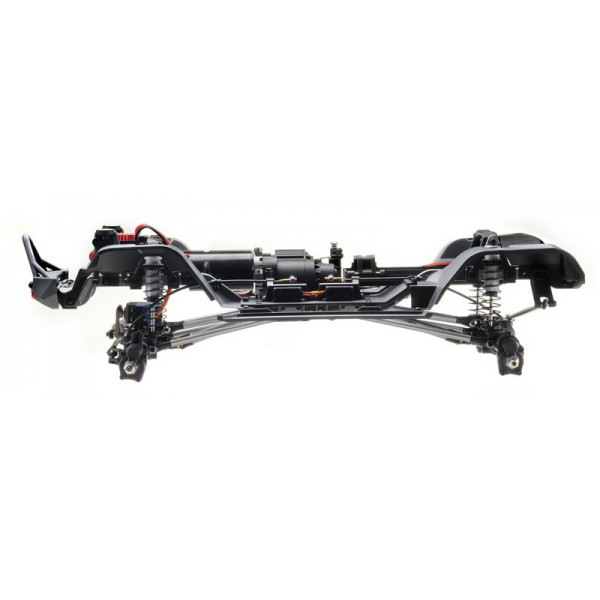

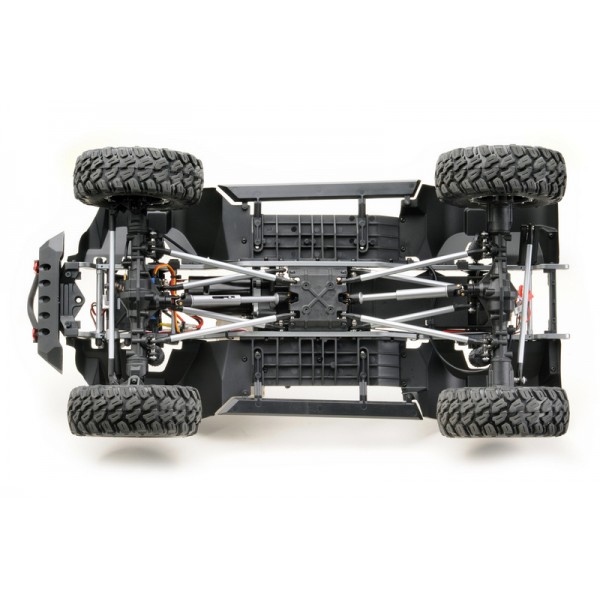

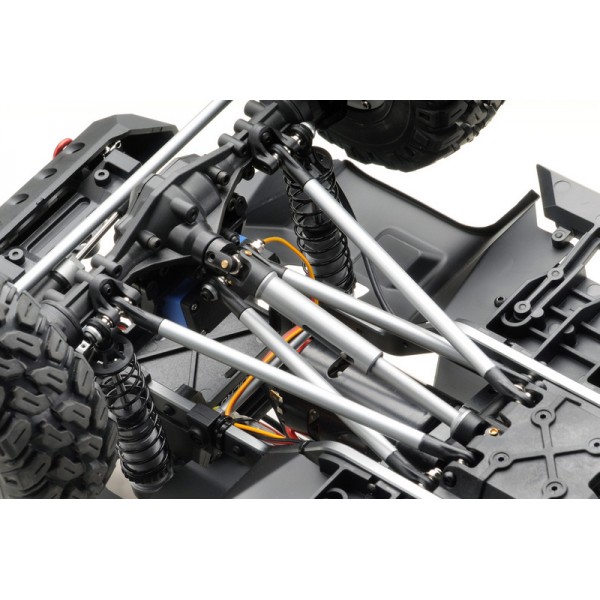

A realistic designed 5mm CNC machined aluminum frame with a heavy duty aluminum 4-link suspension system. Oil filled shock absorbers with 5mm piston rods provide a soft and realistic response. The vehicle comes standard with MEDIUM springs (SOFT and HARD are optional).
If necessary, a stabilizer set included in the delivery can also be installed.

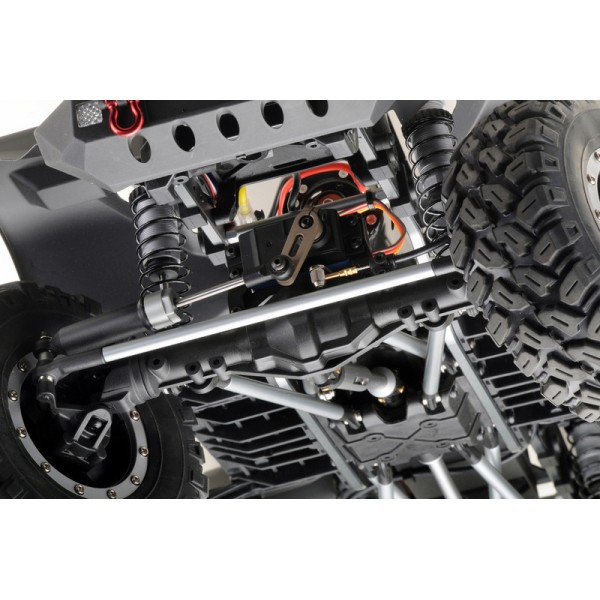

Portal axles not only offer a greater distance from the differential housing to the ground than conventional axles, they also have another positive feature. In conventional tracks, the torque applies such a force that the vehicle jumps over the obstacle. The portal axle design reduces the gear ratio to the wheels and virtually eliminates torque shocks from the drivetrain. The overall reduction ratio of the axle transmission is more than double that of models without gantry to ensure smooth operation.

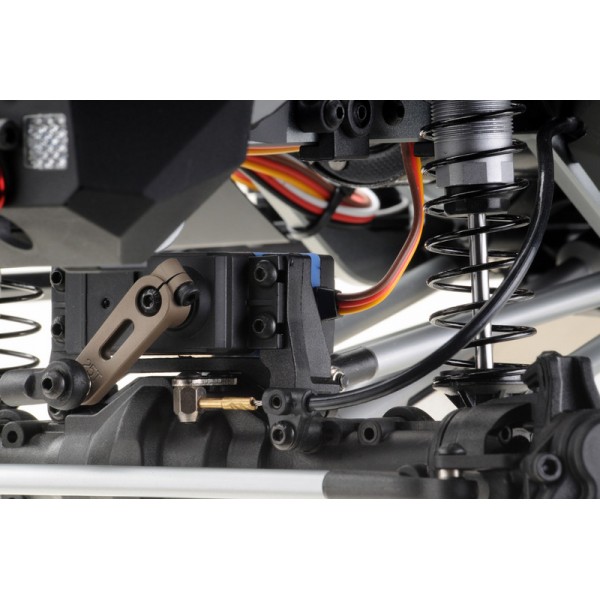

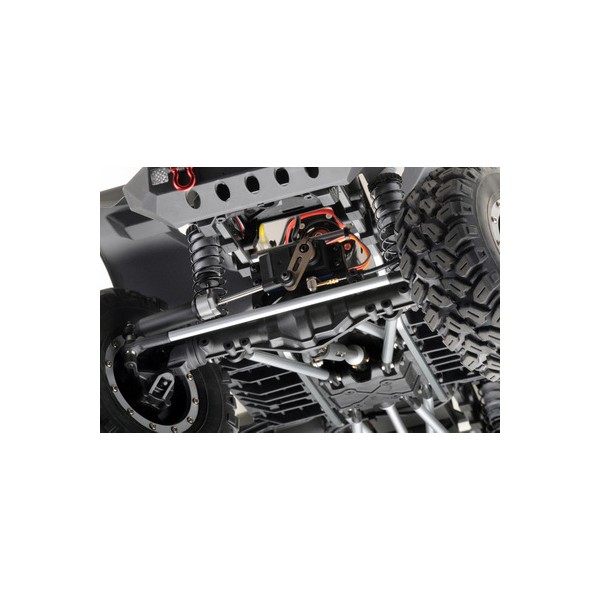

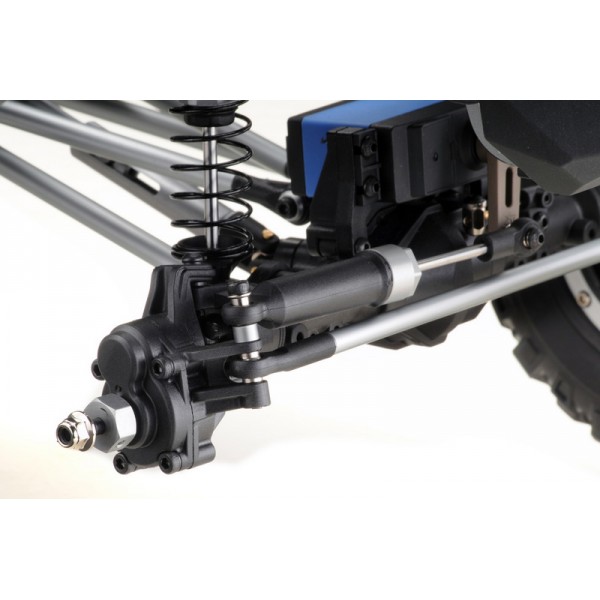

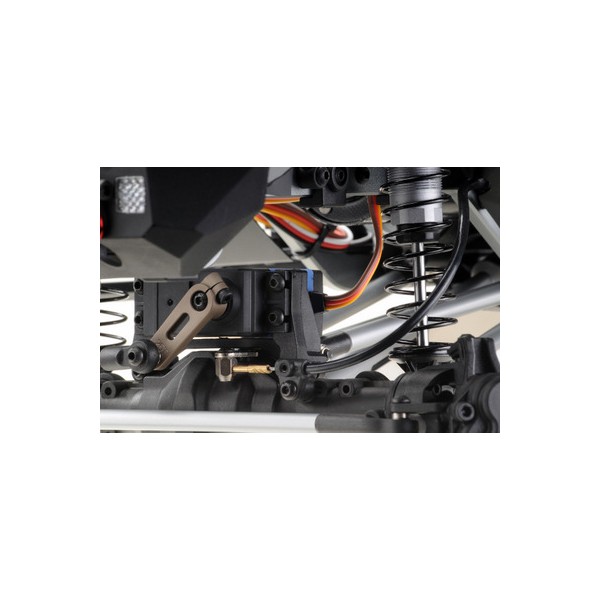

A unique hydraulic steering damper design combined with a digital and waterproof 25kg (drive force) steering servo with aluminum servo arm enables a steering angle of up to 43 °.

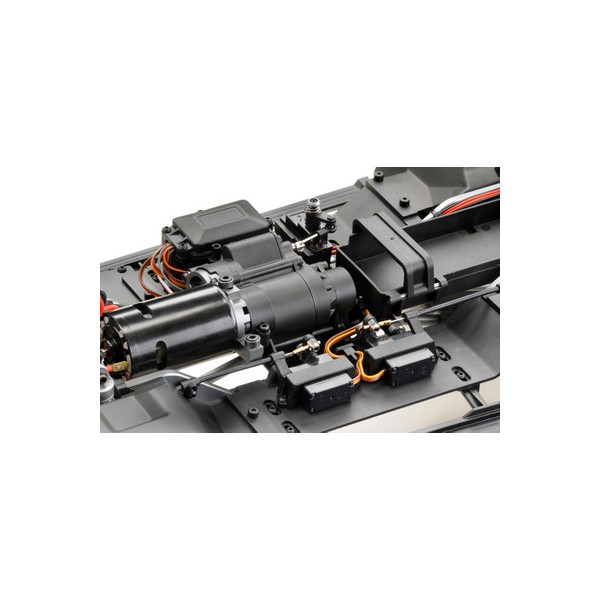

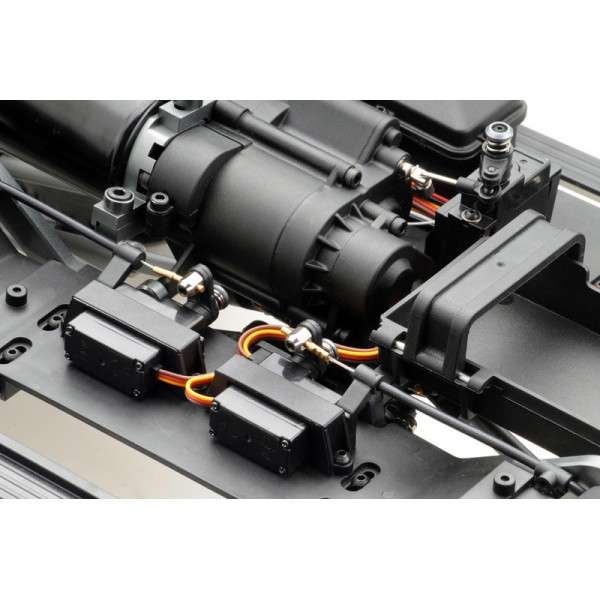

 Three 0.9kg mini servos are already installed for 2-speed transmission and differential lock / unlock. All servos are waterproof.

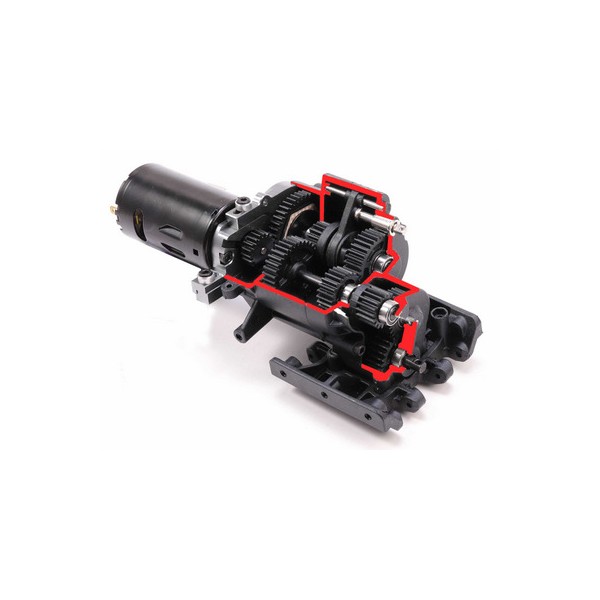

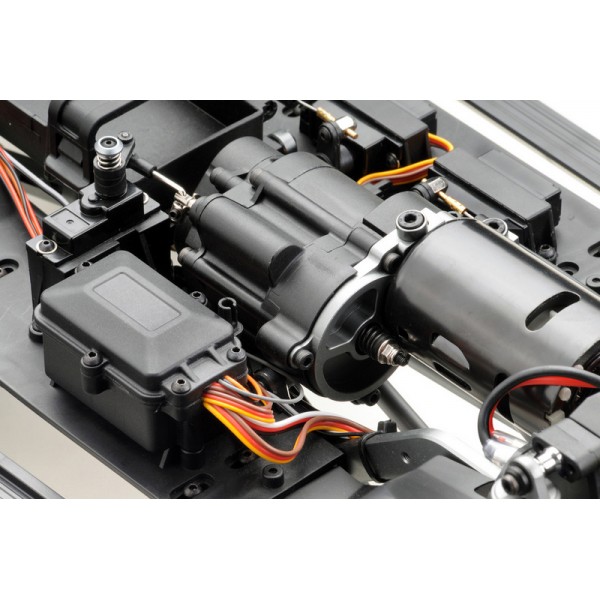

 The YUCATAN Crawler has a 2-speed manual transmission that allows you to overcome difficult terrain and also quickly reach the next obstacle. Just press a button on the remote control and switch from the standard 1 / 37.1 (low speed) to 1 / 15.1 (high speed) gear ratio.
 Lock and unlock the front and rear differentials independently for maximum performance on the track, all remotely controlled with your radio and 2 integrated mini servos. An aluminum engine mount and adjustable slipper clutch offer additional protection in extreme conditions.
Leave the differential unlocked for a smooth ride at high speed. On technically demanding trails, you can lock the front differential, rear differential, or even both to handle extreme terrain.

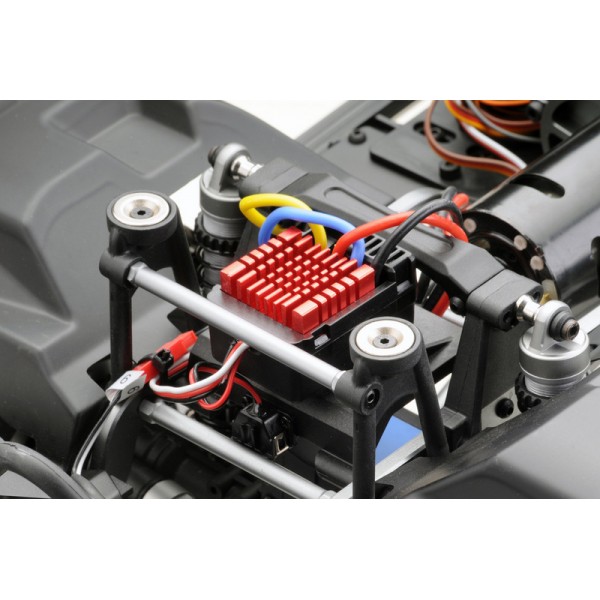

Hardened steel differentials and transmission parts - designed for high loads. The drive concept, powered by HOBBYWING, includes an 80A (440A peak) waterproof speed controller and a 775 motor.
With an optionally available program box, 15 different parameters can be set: n:
Run. Mode / Bat. Initial Startup Type / Force / Max. Forward / Max. Reverse / Maximum brake / Drag brake / Drag brake speed / Neutral range / Punch / PWM frequency / BEC V / Freewheel
 The battery box has the dimensions of approx. (L / W / H) 160x48x25mm and is therefore designed for flat 2S or 3S LiPo batteries which also matches our recommendation.

In 3S LiPo battery operation it is possible to reach +30 km / h! Therefore, this crawler is probably the fastest off-roader of its kind.

 ATTENTION:the speed regulator is also compatible with "4S LiPo", which we absolutely do not recommend! The vehicle (gearbox, axles ...) is exposed to extreme force transmission during 4S operation. Track handling also deteriorates as speed increases which can lead to accidents and costly damage (no warranty claims).

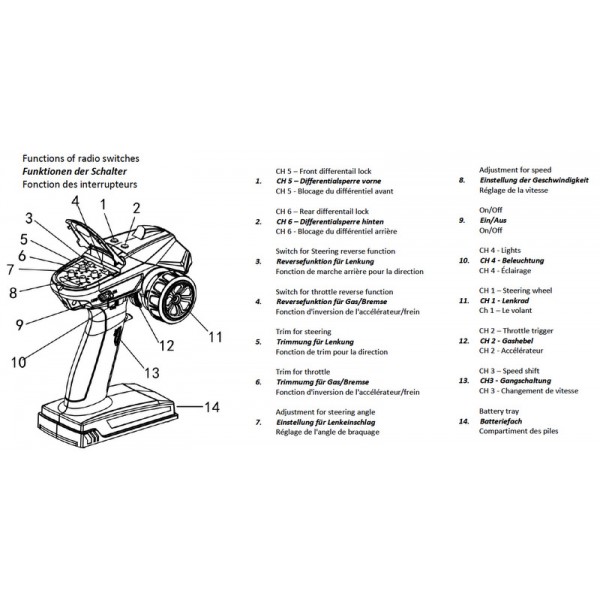

The 2.4GHz 6-channel radio system gives you total control of your vehicle, whether it's the light unit, 2-speed transmission, differential locks or maximum speed setting.

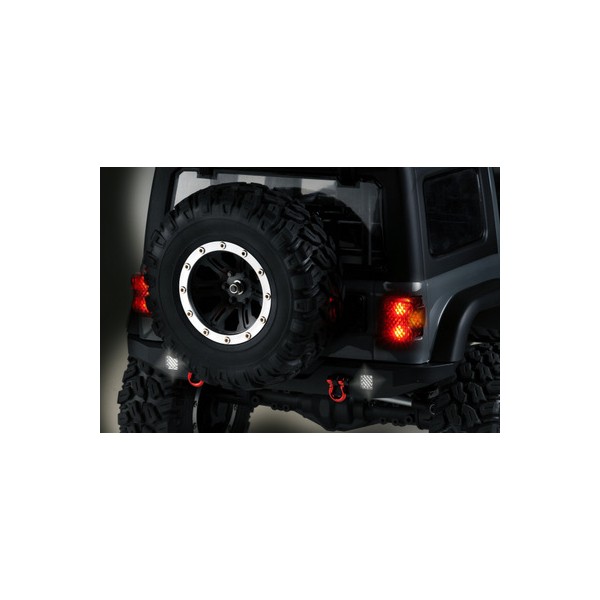

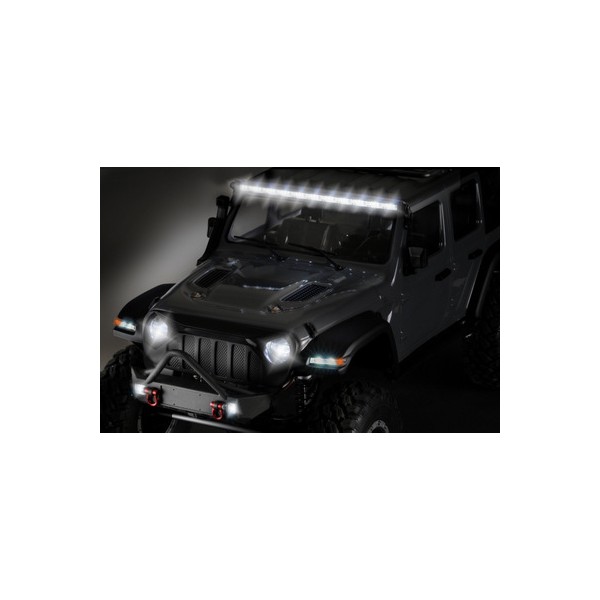

  •     Rear lights
  •     Direction indicators (for steering movements)
  •     Clearance lights
  •     Emergency lights (front and rear)
  •     Brake light
  •     Roof light bar

The lighting unit is integrated into the vehicle's 6-channel receiver. Do you want to use another 6-channel remote control without losing the lighting functions? No problem! You will find a description of how to proceed in the manual.
 Elegant 2.2-inch Beadlock wheels with aluminum rings and 12-bolt design.
Super soft tires with realistic lateral flex for maximum traction on any rock.
Standard 12mm aluminum wheel hubs fit all standard track rims (note portal axles!).

Rocksliders and molded internal fenders protect the frame from dirt and damage.
 1.2mm PC flip-top body with magnetic and screw supports.

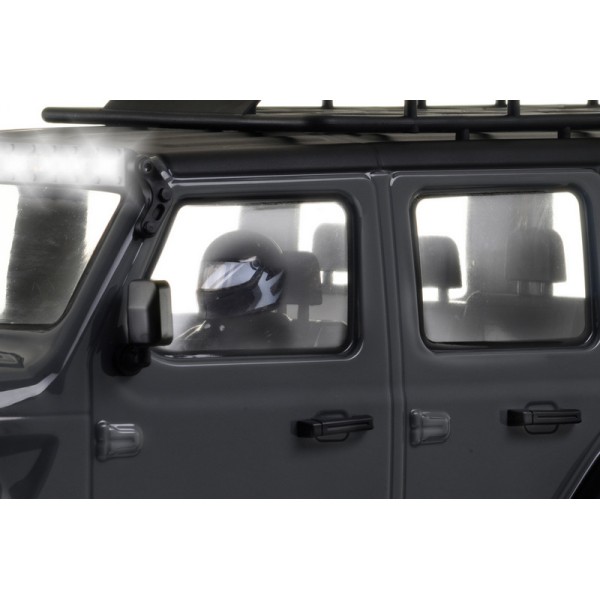

Complete interior incl. driver figure.

  •     Tow hook (front and rear)
  •     Rearview mirror
  •     Mouthpiece
  •     Full-size spare wheel
  •     Roof rack
  •     Fuel filler neck
  •     Handles
  •     Hood supports
  •     Plates #


  •     Length: 635 mm
  •     Width: 290 mm
  •     Height: 300 mm
  •     Ground clearance: 95 mm
  •     Wheelbase: 370mm
  •     Gewicht: 4200 g
  •     Approach angle: 65 °
  •     Departure angle: 48 °
  •     Steering angle: 43 °
  •     Wheels: 2.2 "Beadlock wheels with 12mm hex hub
  •     Tires: 50x132mm including foam insert
  •     Shock length: 100mm
  •     Viscosity of oil for shock absorbers: 500 cps
  •     Transmission ratio: 2 speeds (Hi 1 / 15.1 / Lo 1 / 37.1), remote controlled
  •     Gears: Modul 0.8 / 32dp - 16Z pinion / 44T main gear
  •     Drive system: 4WD


  • Speed Controller (ESC): Hobbywing 80A Brushed / Waterproof with T-Plug, Programmable, BEC 6V @ 4A, 2S-3S * LiPo suitable
  • Motor: Brushed 775 "high-torque" motor
  • Steering servo: 25kg metal gear, digital and waterproof
  • Mini servos: 0.9kg, waterproof
  • Radio system: 2.4GHz 6-channel radio (suitable for 4.8 - 12.0V LiPo)


  •     Absima CR1.8 YUCATAN RTR
  •     2.4 GHzm 6-channel radio system
  •     Sticker sheet
  •     Front / rear stabilizer
  •     Cross wrench and Allen keys
  •     Manual (DE / EN / FR)

The Yucatan CR1.8 accepts a wide range of LiPo batteries and chargers depending on the type of battery.
For the radio you need 4 AA mignon cells
Optional program box for setting the speed regulator parameters
