Tamiya Toyota Hilux Extra Cab 1 /10 4WD CC-01 Chassis kit Maximize

Tamiya Toyota Hilux Extra Cab 1 /10 4WD CC-01 Chassis kit

Tamiya Toyota Hilux Extra Cab 1 /10 4WD CC-01 Chassis kit

More details

p TA58663

Add to cart

You can purchase this product in installments with Consel. Click here for more information.


Toyota Hilux Extra Cab 01

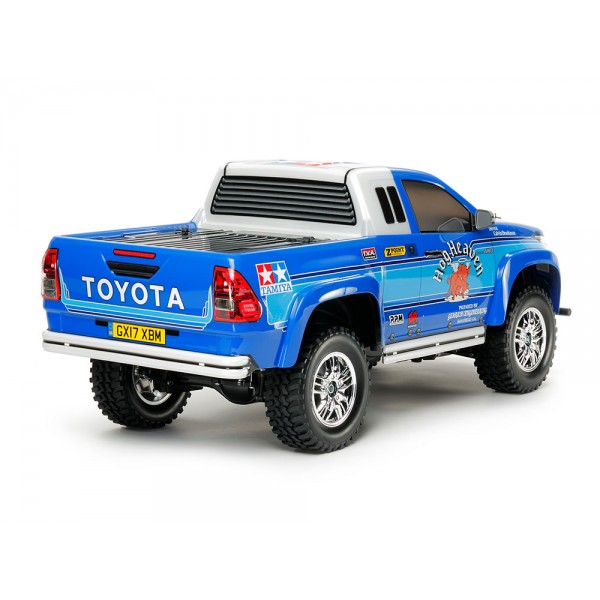

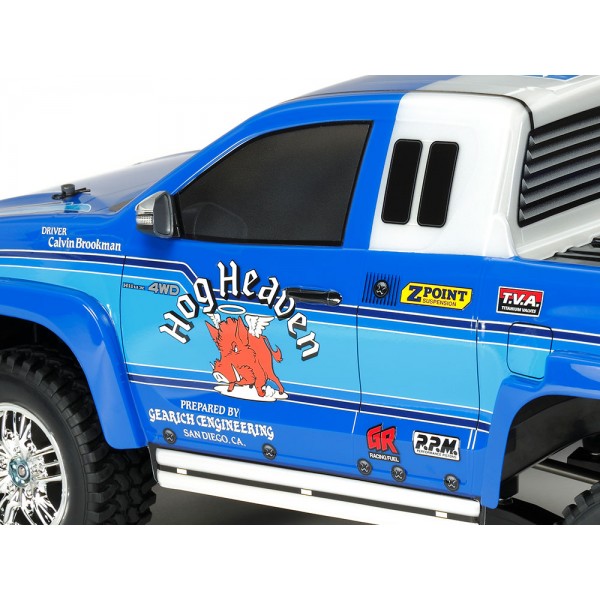

RC one-off model in the world! ] This is an electric radio control car assembly kit that reproduces a one-off model produced by TOYOTA (GB) PLC of the United Kingdom for the promotion of Toyota Hilux. Based on the extra cab that is an extension of the two-door single cab, the front and rear fenders are expanded to create a powerful mood, and the form is further reproduced with polycarbonate. The front and rear light cases and door mirrors are prepared as separate parts with plating specifications to tighten the details. In addition, markings for coloring, including unique boar illustrations, are set with large stickers. The chassis adopts the CC-01, a shaft drive full-time 4WD, which can be enjoyed from cross-country driving to on-road driving with a vehicle-like body structure.

CC-01, a tough four-wheel drive chassis that can be used anywhere, with a motor installed vertically at the front of the bathtub frame, which is light and high in strength, to the front via gears, and to the rear via the propeller shaft Adopts a full-time 4WD CC-01 chassis that conveys power. In addition to having differential gears on the front and rear, the differential inside the rear axle can be assembled with a lock specification, making it easy to control on rough roads. The front is an upper I arm, a lower H arm is a double wishbone type, and the rear adopts a 4-link rigid. The rear is equipped with four CVA oil dampers with excellent shock absorption. The beautiful wheels are fitted with mud terrain type hollow rubber block tires. Real body and tough shear In is one fun cross-country running.

Basic specifications

  •      Length: 465 mm
  •      width: 200 mm
  •      height: 180 mm
  •      Pitch: 267 mm
  •      Tread = front and rear 160 mm
  •      Tire width / diameter = front and rear 33/88 mm
  •      Chassis = type of wind bath of the helm frame
  •      Drive system = vertical motor 4-wheel drive shaft transmission
  •      Different gear system = front and rear: 3 tapered
  •      Suspension = front: double swing arm, rear: 4 rigid arms
  •      Shock absorber = CVA oil shock absorber front and rear
  •      Motor = RS540 type



Items required separately

  •      Set of 2.4G electric RC engines for specific purposes
  •      Four AA batteries for transmitter

Toyota Hilux Extra Cab 02
