RC4WD 1/ 10 mini Warn 9. 5cti Winch Z-S1571 Maximize

RC4WD 1/ 10 mini Warn 9. 5cti Winch Z-S1571

MINI VERSION

More details

38,00€

Z-S1571

Availability: Available

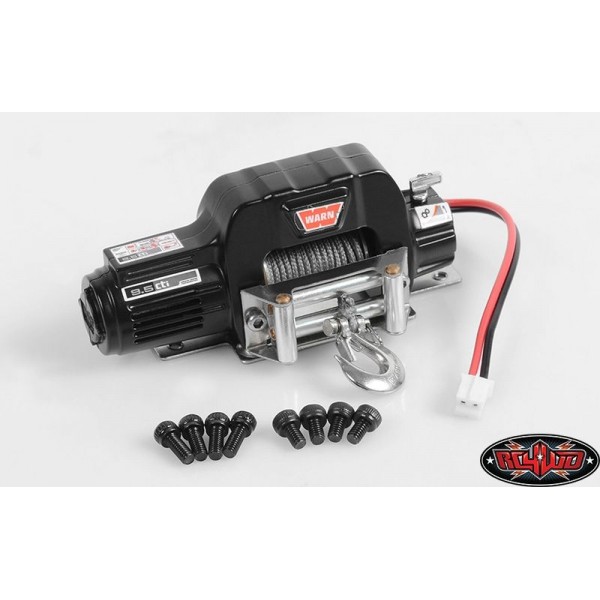

RC4WD 1/10 MINI Warn 9.5cti Winch

http://www.beadlok.com/product/images/6/WARN_Logo_RGB-800.jpg

One of the most iconic names in off-road. This is an all new RC4WD 1/10 Warn 9.5cti winch. This winch offers ultra scale looks, and superior quality and craftsmanship. Officially Licensed by Warn.



Specifications:
  • Cast Aluminum Case
  • Stamped Steel Components
  • Working Spring Loaded Warn Hook
  • Synthetic Winch Rope
  • Highly Detailed
  • Full Warn Decals Installed
  • Voltage: 6v to 11.1v
  • Can operate on 3 Cell Lipo
  • Easily Rebuildable
  • 3ft/.9M Rope Pre-Installed
  • Same Mounting Locations as Bulldog Winch
  • Load Limits: Dead Lift 6.6lbs/3kgs
  • Load Limits: Rolling Drag 9lbs/4.1kgs
  • 30 Day Warranty

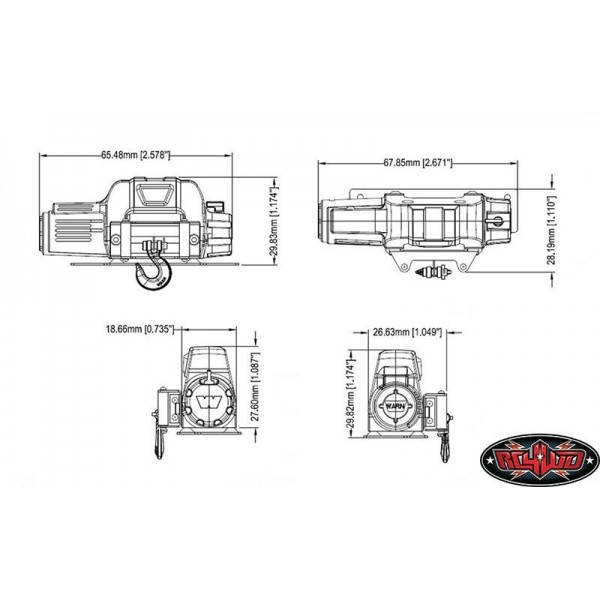

  • Length: 2.9in / 73.68mm
  • Total Width: 1.25in / 31.75mm
  • Height: 1.31in / 33.56mm
  • Weight: 2.1oz / 60g

http://www.beadlok.com/product/images/AF/Z-S1079-2.jpg
http://www.beadlok.com/product/images/AF/Z-S1079-3.jpg
http://www.beadlok.com/product/images/AF/Z-S1079-4.jpg
http://www.beadlok.com/product/images/AF/Z-S1079-5.jpg
http://www.beadlok.com/product/images/AF/Z-S1079-6.jpg

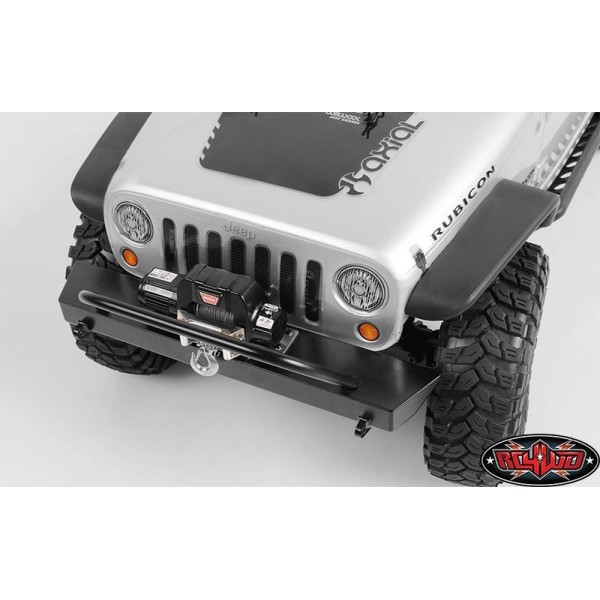

Shown on Tough Armor Winch Bumper with Grill Guard to fit Axial SCX10 (Z-S0160) and Axial Jeep Rubicon for example (Not Included)





Photos below show product, submitted by customer (Not Included)

http://www.beadlok.com/product/images/6/Z-S1079.JPG



Warn Winch Mounting Plate Measurements

http://www.beadlok.com/product/images/626/Z-S1079-13.jpg

http://www.beadlok.com/product/images/AF/Z-S1079-12.jpg

Shown installed with Gelande II Truck Kit w/Cruiser Body Set (Z-K0051) for example (Not Included)



What's Included:
  • 1x RC4WD 1/10 Warn 9.5cti Winch
  • 1x RC4WD Warn Winch Pull Tag
  • 4x M2.5x4mm SHCS (Black) (Z-S0760)
  • 4x M2.5x6mm SHCS (Black) (Z-S0855)
  • 1x Warn Decal Sheet

Required Parts:

  • RC4WD Warn 1/10 Wireless Remote/Receiver Winch Controller Set (Z-S1092)
  •  RC4WD Wired Winch Control Unit (Z-S1089)

Optional Parts:

  • ARB Winch Snatch Block (Z-S0341)
  • RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168)
  • RC4WD 1/10 Warn Hawse Polished Aluminum Fairlead (Z-S1310)
  • Winch Mount for Axial Wraith (Z-S1307)
  • RC4WD Portable Winch Point Tool (Z-S1342)
  • RC4WD Marlin Crawlers Front Winch Bumper for Trail Finder 2 (Z-S1496)
  • Rock Hard 4x4 Full Width Front Bumper for Axial SCX10 Jeep (Z-S1338)
  • RC4WD 1/10 Viking Roller Fairlead for Warn 9.5cti Winch (Z-S1498)
  • RC4WD Warn 1/10 Premium Winch Hook (Z-S1551)
  • RC4WD Foldable Winch Anchor (Black) (Z-S1623)
  • RC4WD Warn Rock Crawler Front Winch Bumper for Trail Finder 2 (Z-S1590) (With Mount Plate Reversed)

Replacement Parts:

  • Replacement Motor/Gearbox for Warn 9.5cti 1/10 Winch (Z-E0051)
  • 1/10 Warn Hook (Z-S1011)
  • Synthetic Winch Rope (Z-S0038)

Replacement Hardware:

  • 4x M2x5mm FHSC (Silver)
  • 2x M2x4mm SHCS (Silver) (Z-S0927)
  • 2x M2x6mm SHCS (Silver) (Z-S0994)
Notes:
  • This winch requires a control unit. We offer both a wired (uses your radio's third channel) and wireless unit (hooks directly to a battery).
  • This product is not waterproof. You may be able to waterproof on your own, but this will void the manufactures warranty.
  • For Warnings, Precautions, Safety and Damage Limits:Click Here
  • Same mounting points as our Bulldog winches
  • Dead Lift is defined as the winch lifting a product from a higher position with no help from the product being lifted.
  • Rolling Drag is defines as a truck using its rolling force to help the winch pull a truck or products weight.

Warranty Definition:

  • This product will be free from defects in materials and workmanship and fully functional when new.
  • The gearbox can handle certain weight limits. If you over load the winch, the gearbox or motor will fail. This is not considered a warranty issue. We have replacement motor/gearbox units and provide clear instructions on replacement.

Instruction Manual:

  • Detailed Assembly Click Here

Warn and the Warn name are registered trademarks of Warn Industries. The Warn logo is property of Warn Industries.
