Rc4wd 1 /14 Kit Truck Mounted Hydraulic Crane JD00019 Maximize

Rc4wd 1 /14 Kit Truck Mounted Hydraulic Crane JD00019

Rc4wd 1 /14 Kit Truck Mounted Hydraulic Crane JD00019

More details

1 876,00€

JD00019

Availability: Preorder

You can purchase this product in installments with Consel. Click here for more information.




Specifications:

  • CNC Machined
  • Black, Silver and Red Anodized Finishes
  • Aluminum Alloy Construction
  • Operating Voltage: 11.1-12.4V
  • 40A Brushless ESC
  • 270Ãâ€Å¡Ãƒâ€šÃ‚° Action Arm Turning Angle
  • Maximum Lifting Force:
    • 3KG / 6.6lb Maximum for the Longest Arm
    • 3.8KG / 8.4lb Maximum After Folding the 6th Section of the Arm
    • 4.8KG / 10.6lb Maximum After Folding the 5th Section of the Arm
    • 6KG / 13.2lb Maximum After Folding the 4th Section of the Arm
  • Height after Folding: 11.8in / 300mm
  • Width of Front Feet: 7.5in / 190mm (Folded) 29.5in / 750mm (Extended)
  • Width of Rear Feet: 7.5in / 190mm (Folded) 16.3in / 415mm (Extended)
  • Maximum Lifting Radius: 35.4in / 900mm
  • Maximum Lifting Height: 742.91in / 1090mm
  • Hydraulic Pump: Power Flow 0.8L / MIN, Rate Pressure 2.5MPA
  • Total Weight: 176.4oz / 5000g (Including Packing Material)
















Shown installed on Tamiya 56323 Scania R620 6x4 Highline for example (Not Included)














What's Included:

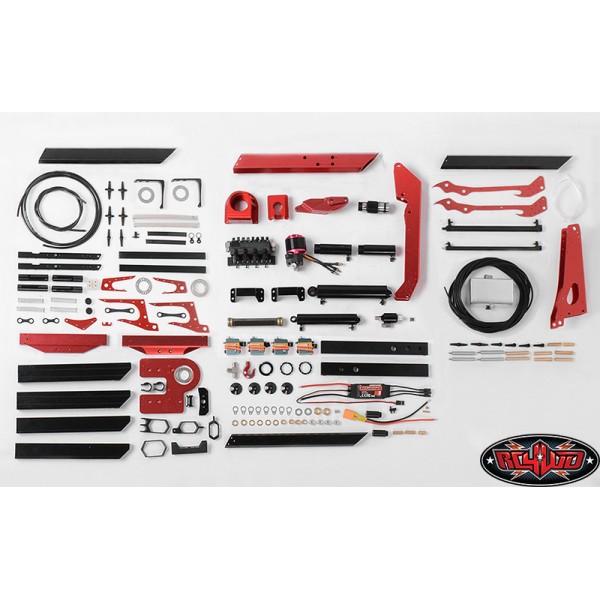

  • 1x 1/14 Truck Mounted Hydraulic Crane

Required to Complete:

  • Thread Locking Adhesives
  • Straight Screwdriver
  • Hex Drivers (1.5mm, 2mm, 2.5mm)
  • Long Nose Pliers

Additional Parts Needed:

  • Lipo Charger (Z-E0047)
  • 3S 6500mAh 11.1v 20c Lipo Battery (Max size: 73mm x 80mm x 132mm) (Z-E0038)
  • Mobile DTE22 V22 Hydraulic Oil 16oz (VVV-S0111)


Notes:

  • Fits Tamiya 1/14 King Hauler Tractor Truck Kit.
  • The hydraulic system uses #32 hydraulic oil.
  • Requires additional XT60 connectors for the battery.
  • Use good quality hex drivers to avoid stripping screw heads.
  • Use thread lock when putting metal screws into metal parts.
  • You will need a minimum of 5 channels for Crane Model and at least 9 channels for 1/14 Truck Model.
  • This can handle a 3 cell lipo.
  • General portion of truck may be used, but will require modifications.
