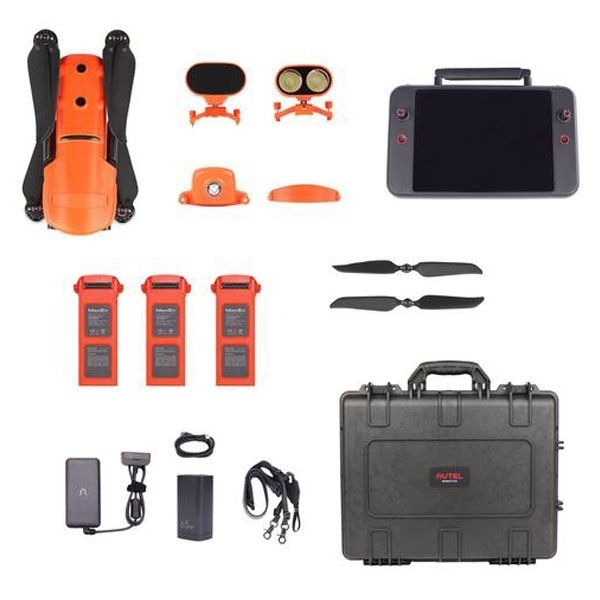

Autel Robotics Drone EVO II 640T Dual Enterprise Bundle Thermic Camera

PRICES ON REQUEST, PLEASE CONTACT US CLICK HERE!!

Work like never before

Optimize your workflow with our toughest EVO II ever, featuring new camera accessories and features to meet the needs of professionals in every industry, from fire to construction. With a foldable design that can be deployed in seconds and easy-to-use controls that can be operated with one hand, the EVO II Enterprise offers a safe way to increase efficiency without increasing stress.

SPECIFICATIONS

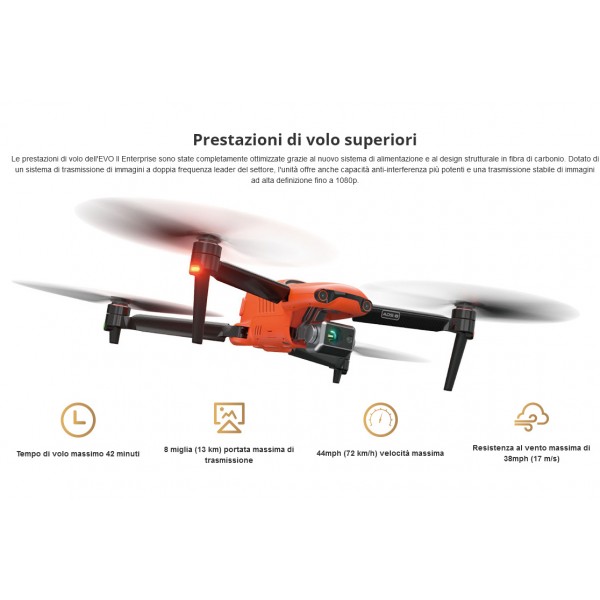

Aircraft



Takeoff Weight(Without Accessories)		EVO II Pro Enterprise：2.45 lbs (1110 g) EVO II Dual 640T Enterprise：2.51 lbs (1136.5 g)
Diagonal Length		16.8 inches (427 mm)
Max Flight Time (no wind)		42 min（without accessories）
Max Hovering Time (no wind)		38 min（with strobe） 29 min（with spotlight） 34 min（with loudspeaker） 36 min（with RTK module）
Max Level Flight Speed		45 mph (20 m/s) (Ludicrous)
Max Ascent Speed		18 mph (8 m/s (Ludicrous)
Max Service Ceiling Altitude		4.3 miles (7000 m) MSL
Operating Temperature Range		14℉ to 104℉ (-10℃ to 40℃)
Max Wind Speed Resistance		39 - 46 mph (17-20 m/s)
Operating Frequency		2.400 GHz - 2.4835 GHz；5.725GHz - 5.850 GHz
Hovering Accuracy Range		Vertical: ± 0.1 m (with RTK) ± 0.1 m (with Vision Positioning) ± 0.5 m (with GPS Positioning) Horizontal: ± 0.1 m (with RTK) ± 0.3 m (with Vision Positioning) ± 1.5 m (with GPS Positioning)

Gimbal



Operation Range		Pitch: -135° to +45° Yaw: -100° to +100°
Operation Range		Pitch: -90° to +30° Yaw: -90° to +90°
Stability		More Stable with 3 Axies
Max Control Speed (Tilt)		300°/s
Angular Vibration Range		±0.005°

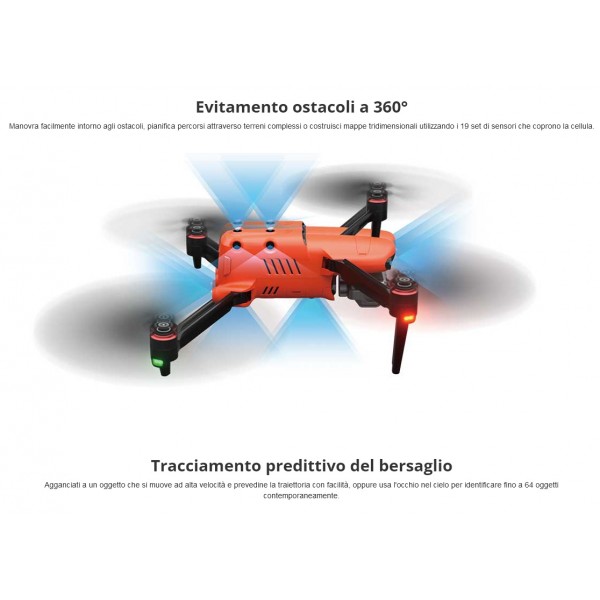

Sensing System



Sensing System Type		Omnidirectional Binocular Sensing System
Forward		Accurate Measuring Range: 0.5 - 20m Detection Range: 0.5 - 40m Effective Sensing Speed: < 15 m/s FOV: Horizontal: 60°, Vertical: 80°
Backward		Accurate Measuring Range: 0.5 - 16m Detection Range: 0.5 - 32m Effective Sensing Speed: < 12 m/s FOV: Horizontal: 60°, Vertical: 80°
Upward		Accurate Measuring Range: 0.5 - 12m Detection Range: 0.5 - 24m Effective Sensing Speed: < 6 m/s FOV: Horizontal: 65°, Vertical: 50°
Downward		Accurate Measuring Range: 0.5 - 11m Detection Range: 0.5 - 22m Effective Sensing Speed: < 6 m/s FOV: Horizontal: 100°, Vertical: 80°
Sides		Accurate Measuring Range: 0.5 - 12m Detection Range: 0.5 - 24m Effective Sensing Speed: < 10 m/s FOV: Horizontal: 65°, Vertical: 50°
Service Environment		Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.)

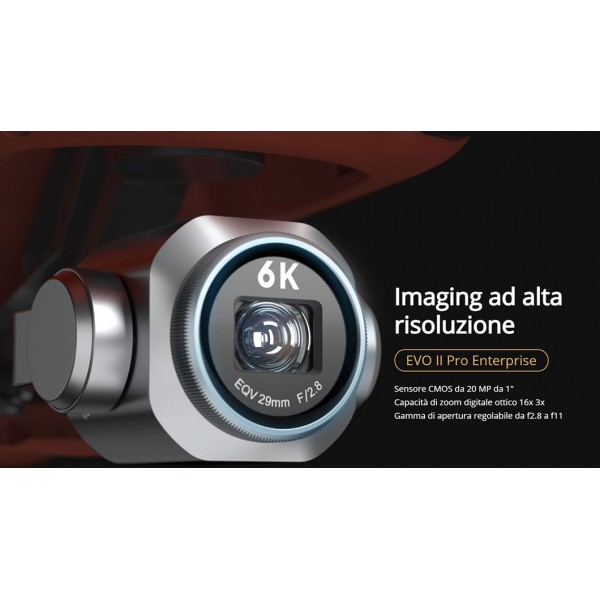

EVO II Pro Enterprise Camera



Sensor		1 inch CMOS; 20 million effective pixels
FOV		82°
Aperture		f/2.8 - f/11
Focus range		1m to ∞
Equivalent Focal Length		28.6mm
ISO Range		Video: 100-6400 (auto) Photo: 100-12800 (auto)
Zoom		1-16x (up to 3x lossless zoom)
Still Photography Modes		Single Shot Burst shooing: 3/5 frames Automatic Exposure Bracketing (AEB)： 3/5 bracketed frames at 0.7 EV Bias Timelapse： JPG：2s/5s/7s/10s/20s/30s/60s DNG：5s/7s/10s/20s/30s/60s HyperLight：support (under 4K JPEG format） Long Exposure: Max 8s HDR imaging: (under 4K JPEG)
Still Photography Resolution		5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9)
Video Format		MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Video Resolution		6K 5472*3076 p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080p 1920*1080 p120/p60/p50/p48/p30/p25/p24
Max Bitrate		120Mbps

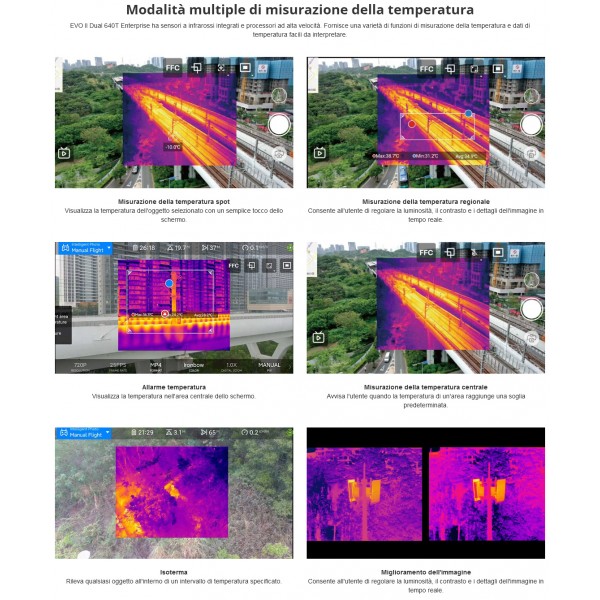

EVO II Dual 640T Enterprise Thermal Camera



Sensor		Vanadium oxide uncooled infrared focal plane detector
Viewing Angle		H33°V26°
Sensor Resolution		640x512
Pixel Pitch		12μm
Focal Length		13mm
Wavelength range		8～14μm
Accurate temperature measurement distance		2-20 meters
Temperature measurement accuracy		±3℃ or ±3% of reading (whichever is greater) @ambient temperature -20℃~60℃
Temperature range		High gain mode: -20° to +150°C Low gain mode: 0° to +550°C
Zoom		1-8x
Photo shooting mode		Single shooting, continuous shooting,time-lapse shooting
Camera resolution		Infrared mode: 640*512 Picture in Picture: 1920*1080, 1280*720
Video resolution		640*512 30fps
Video format		MOV / MP4 (support H.264/H.265)

EVO II Dual 640T Enterprise Visual Camera



Sensor		1/2 inch CMOS; 48M effective pixels
FOV		79°
Aperture		f/1.8
Focus range		0.5m to ∞
Equivalent Focal Length		25.6mm
ISO Range		Video: 100-6400 (auto) Photo: 100-3200 (auto)
Zoom		1-16x (up to 4x lossless zoom)
Still Photography Modes		Single Shot Burst shooing: 3/5 frames Automatic Exposure Bracketing (AEB)： 3/5 bracketed frames at 0.7 EV Bias Timelapse： JPG：2s/5s/7s/10s/20s/30s/60s DNG：5s/7s/10s/20s/30s/60s HyperLight：support (under 4K JPEG format） Long Exposure: Max 8s HDR imaging: (under 4K JPEG)
Still Photography Resolution		8000*6000 (4:3) 7680*4320 (16:9) 4000*3000 (4:3) 3840*2160 (16:9)
Video Format		MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Video Resolution		8K 7680*4320 p25/p24 6K 5760*3240 p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24
Max Bitrate		120Mbps

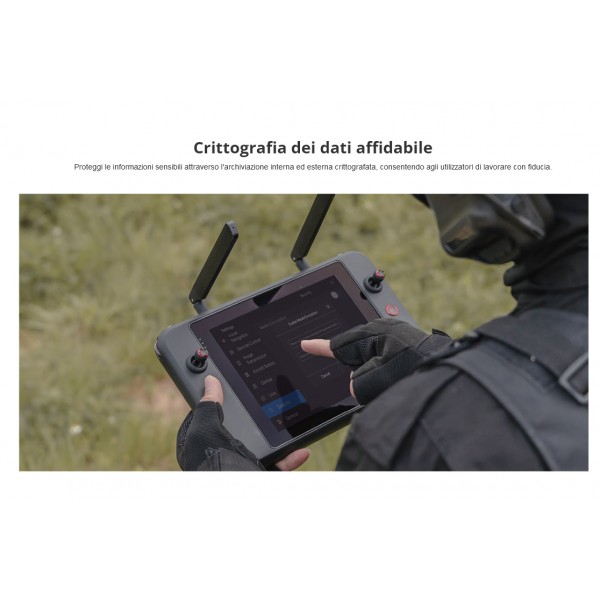

Remote Controller



*Operating Frequency		902-928 MHz; 2.400-2.4835 GHz; 5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference)		FCC: 13km; CE: 7km
Transmitter Power (EIRP)		902-928 MHz FCC:≤30dBm 2.400-2.4835 GHz FCC:≤30dBm CE：≤20dBm 5.725-5.850 GHz CE：≤14dBm
Internal Storage		128GB
Video Output Port		HDMI
Built-in Battery		Name: Intelligent Li-ion battery Capacity：5800mAh Voltage：11.55V Battery Type：Li-ion Battery Energy：67 Wh Charging time：120 min
Battery Life		~ 3hr (Max. intensity) ~ 4.5hr (50% intensity)
Operating Temperature		-20℃ to 40℃
RC Size		303 x 190 x 87 mm (Ant. folded) 303 x 273 x 87 mm (Ant. unfolded)
Weight		1150g (Without protective case) 1250g (With protective case)
Satellite Positioning Module		GPS + GLONASS + Galileo

Note:
*The operating frequency band varies according to different countries and areas.

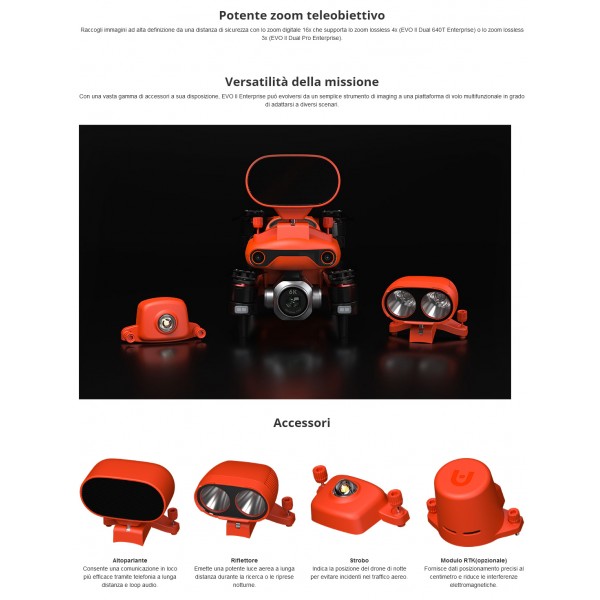

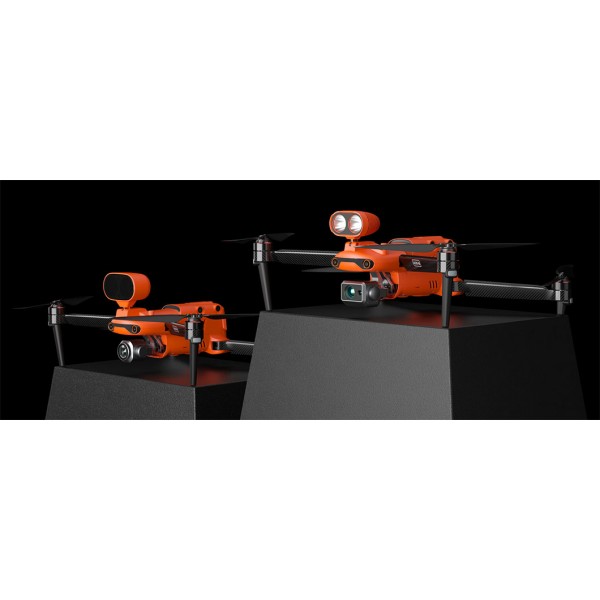

Accessories



Strobe		Dimensions：39*72*34 mm Weight：19.5 g Connections：Floating Connectors Power：Avg. 1.6W Controllable Range：5000 m Light intensity：Min 50cd；Max 486cd；Avg. 290cd
Loudspeaker		Dimensions：46*80*77 mm Weight：98.5 g Connections：Floating Connectors Power：Max 18W Decibel：120dB @ 1m；88dB @ 60m；70dB @ 110m Max Bitrate：36kbps Adjustable Angle Range：0°~45°
Spotlight		Dimensions：48.5*72*63 mm Weight：77 g Connections：Floating Connectors Power：Max 35W Controllable Range：30 m Adjustable Angle Range：0°~90° Illuminance：FOV14°, Max：11lux @ 30m Straight
RTK Module (Optional)		Dimensions：55.5*72.5*57 mm Weight：59.5 g Connections：Floating Connectors Power：~ 3W RTK Positioning Precision：1.5 cm + 1 ppm（(Vertical）; 1 cm + 1 ppm（Horizontal）

Battery



Capacity		7100 mAh
Voltage		11.55 V
Battery Type		LiPo 3S
Energy		82Wh
Net Weight		365g
Charging Temperature		5~45℃
Storage Temperature & Humidity		-10~30℃，65±20%RH
Recommended Storage Temperatur		22~28℃
Max Charging Power		93 W
Charging Time		90 mins

Charger



Input		100-240 V, 50/60 Hz, 1.5A
Output		13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
Voltage		13.2 ± 0.1 V
Rated Power		66 W

Internal Storage		8 G
SD Storage		Standard: 32 GB Max. support 256GB （ UHS-3 rating required ）
