Kyosho Kit Buggy Beetle Legendary Series 2WD 30614 Maximize

Kyosho Kit Buggy Beetle Legendary Series 2WD 30614

Kyosho Kit Buggy Beetle Legendary Series 2WD 30614

More details

288,00€

30614

Availability: Order

You can purchase this product in installments with Consel. Click here for more information.


Kyosho Buggy Beetle 2wd Legendary Series 1

The legendary Beetle returns with powerful off-road performance!
Spirit of the original is enhanced with modern technology!

The famous Kyosho Scorpion and Baja Beetle combined into one legendary off-road machine that became synonymous with electric buggy racing in the 1980’s, a name that is still known around the world today. Now, in honor of the original Scorpion and its many fans, the Beetle makes a triumphant return with the advanced Scorpion 2014 chassis featuring the same basic ladder frame 2WD structure as the original, but with the latest technology and components. from the kit, making assembly easier and the finished chassis lighter and more rigid. From experts familiar with the Scorpion’s standard of performance to present-day drivers unaware of the Scorpion legend, all will enjoy the Scorpion experience that inspired so many.


Kyosho Buggy Beetle 2wd Legendary Series 2


●Revival of the off road BEETLE. 2014 version upgraded throughout.
●Kit includes pre-assembled gearbox and oil shocks (shock oil sold separately).
●6061T6 forged aluminum suspension arms.
●Two-piece diecast aluminum gearbox with built-in diff gears.
●Slipper clutch protects gears and provides traction setting options.
●Oil shocks with aluminum cylinders and stainless shafts deliver smooth movement.
●Countersunk surface allows screws to be seated flat.
●Lightweight design from reduction in tapping screws and nuts.
●Near complete use of hex screws provides secure assembly.
●One-piece structure of rear wheels realizes lighter weight.
●Inner sponges included with rear tires.
●Includes newly developed block pattern high-grip compound tires.
●High efficiency full ball bearing specification. (14 included)
●Radio box is suitable for the various shapes and sizes of current batteries.
●Ball diff from Ultima RB can be installed as an optional upgrade.



■Length
398mm
■Width
236mm
■Height
165mm
■Wheelbase
263mm
■Tread (F/R)
198mm / 195mm
■Tire(F/R)
75×20mm / 85×41mm
■Gear Ratio
H setting 6.9:1 L setting 8.3:1 (2 combinations included)
■Weight
1,040g approx. (w/out R/C system & battery)
■Motor
540-class (sold separately)

 Kyosho Buggy Beetle 2wd Legendary Series 3

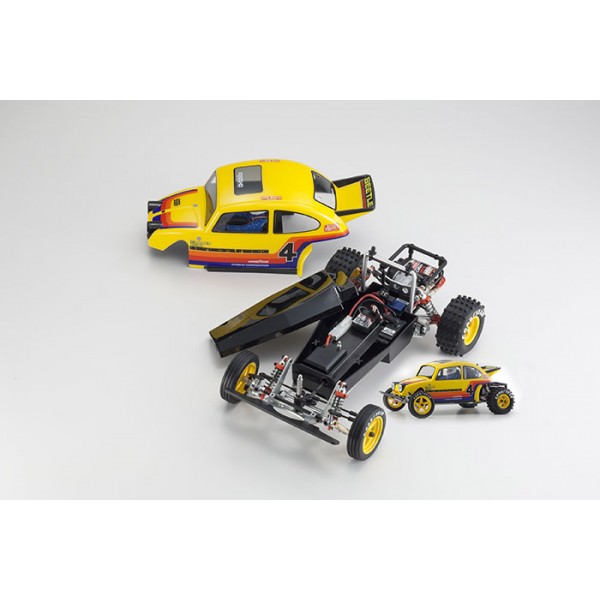

●Pre-assembled kit (gear box and oil shocks are pre-assembled)
●Pre-cut clear polycarbonate body
●Decals
●L-shape hex wrench
●Cross wrench
●Shock wrench
●Shock oil
●Grease

 Kyosho Buggy Beetle 2wd Legendary Series 4

●2-channel, 1-servo R/C system for cars
●540-class motor (30-27 turns recommended)
●ESC compatible with motor
●Battery pack for chassis
●Battery charger
●Paint for painting the polycarbonate body
●Batteries for transmitter
●Tools (1.5, 2, 2.5mm hex wrench driver)

Kyosho Buggy Beetle 2wd Legendary Series 5



Kyosho Buggy Beetle 2wd Legendary Series 6
