Dji FPV Combo Goggle V2 With Quad Drone Maximize

Dji FPV Combo Goggle V2 With Quad Drone

Break through the clouds with speed, power and complete control.

More details

1 349,00€

DJIFPVCOMBO1

Availability: In Stock

You can purchase this product in installments with Consel. Click here for more information.


Redefine flight


Break through the clouds with speed, power and complete control.
Go further and redefine flight.

Soar through the sky in ways that seemed impossible.
We have never lost our passion for flying.
With DJI FPV, this passion has transformed the imagination into reality.
With its immersive and intuitive aerial platform, get ready to overcome any limit.

The FPV has never been so cutting edge

Aerodynamic and sophisticated, the DJI FPV drone guarantees powerful propulsion, battery life and high wind resistance, making its system reliable and visually stunning.
DJI FPV exceeds in several qualities. Thanks to the front sport LEDs and the customizable color lights on the aircraft arms, DJI FPV allows pilots to make their drone more unique than ever.

Top level dive. Unmatched control.
Experience the thrill of immersive flight thanks to the V2 headset for DJI FPV [1] and the super wide angle FOV 150 °. [2] Up to 120fps HD video transmission ensures you have an ultra-smooth, real-time view of your flight.

Super wide angle 150 ° - 84 ° - Super wide angle 150 ° - Maximum frame rate of 120fps

Whether you are an experienced pilot or novice, DJI FPV offers 3 intuitive flight modes that allow anyone to fly with confidence from day one.

S mode
Easily get the dynamic look of FPV footage in S mode.This hybrid flight mode combines the freedom of manual flight with the simplicity of the controls of previous DJI drones.

Mode No.
Ideal for new users, N mode offers immersive flights with traditional drone flight controls, combined with DJI safety features such as obstacle detection. [3]

M mode
Fly in M mode for complete and unlimited control along with the FPV flight experience. Customize the parameters and experience flights and videos like never before. [4]

DJI motion controller

Take your flying experience to new horizons with the new DJI Motion Controller. This compact and intuitive device allows the aircraft to be maneuvered following the natural movements of your hand. This is not a simple FPV innovation. It is a completely revolutionary way to fly.

Emergency brake and stationary flight
Even for experienced pilots, manual FPV flying can be intimidating. This is why DJI FPV comes with a button for the emergency brake and hovering. Simply press this button on the remote control while flying in any mode and at any speed and the aircraft will stop and stand steadily in place in just a few seconds.

Advanced security features
Bottom Auxiliary Light, Intelligent Return to Home (RTH), Low Battery RTH, and Front and Bottom Obstacle Sensing are all built into DJI FPV to ensure safe flight, even at high speeds. [3]

Bottom Auxiliary Light - Front Sensing - Bottom Sensing - ToF

The visual power you expect from DJI
Get results in tune with the intensity of your flights.

Powerful propulsion capabilities combined with a super wide angle FOV 150 ° provide unmatched vision. RockSteady Slow Motion 4x stabilization and distortion correction provide riders with smoother and more dynamic results.

Surreal footage
The DJI FPV drone can record video in 4K / 60fps up to 120Mbps, allowing you to capture crystal clear details that will make the footage as exhilarating as the flight itself.

  • Bit-rate 120Mbps
  • 4K / 60fps video


RockSteady stabilization
No matter how dynamic your maneuvers may be, RockSteady EIS technology will ensure ultra-smooth footage.

* Both H.264 and H.265 video encoding formats are supported, giving you more options for video editing. [5]



Discover O3

The DJI O3 Transmission System (OcuSync 3.0) has been adapted to meet the needs of DJI FPV.
Enjoy ultra-clear real-time video transmission, even over distances up to 10km.

  • Video transmission latency: 28 ms
  • The video transmission latency of DJI FPV is less than 28ms. [6] Video transmission bit rate: 50 Mbps
  • The maximum video transmission bit rate is up to 50 Mbps. Video transmission: 10 km
  • DJI FPV supports HD video transmission distance of up to 10km. [7]


Automatic switching for discontinuous signals
DJI FPV supports automatic switching between 2.4 and 5.8GHz frequencies and provides a video transmission bit-rate of up to 50 Mbps, [8] significantly reducing signal discontinuity.
The high-gain antennas on the aircraft include 3 transmitters and 4 receivers to receive signals, resulting in a stable and reliable video feed.

* If the signal is disconnected, DJI FPV will automatically activate RTH.

Juggle through safe skies

DJI FPV adds an extra layer of security for users with the Dependent Automatic Transmission System (ADS-B). The system receives information about the flight location of the manned aircraft in your area and will alert the V2 headset, providing enough time to avoid other manned aircraft in the vicinity. [1]

Easily replaceable components
DJI FPV's stabilized camera, landing gear and top of the body are modular and easily replaceable components, making repairs much more convenient. DJI Care Refresh is also available, offering you adequate coverage against a wide variety of damages, giving you a better sense of peace of mind when flying. [9]

DJI Virtual Flight App [10]
The DJI Virtual Flight app allows users to practice flying in realistic scenarios before entering the real world.
By simply connecting the DJI FPV V2 headset and the remote control, you will be immediately ready to direct your flight in a totally risk-free virtual environment.

* DJI Virtual Demo

Always take someone with you with Audience Mode
DJI FPV supports Audience Mode. Simply by connecting other DJI FPV V2 headsets to your drone channel and you will be immediately ready to share your emotions.

DJI Fly App
Smartphone live view Edit and share Fly Spots [12]
The DJI Fly app can reproduce the viewer's live point of view directly on your smartphone via data cable. [11] With the DJI Fly app, you can play back movies and edit and share your work on social media, all with just a few taps. You can also discover new popular aerial photography spots near you via the Fly Spots feature.

It is ready to fly as much as you are.

Forget all the cumbersome connection and assembly procedures. DJI FPV Combo has everything you need, already assembled and ready for use. Turn on and activate your drone, remote control, viewer and get ready to fly.

360 ° view of DJI FPV

360

  • Get a taste of what it's like to have a DJI FPV upfront.
  • Click and drag the image to view it.


AR

  • Take a closer look, from every angle.
  • Use your iOS camera to scan the QR code to have a DJI FPV AR preview.


Note:
1. Before flying with DJI FPV, inform yourself about all local laws and regulations. Make sure your flights are conducted safely and in compliance with local laws and regulations.
2. 150 ° FOV is applicable only when recording at 50 or 100 fps.
3. Obstacle detection is only available when the aircraft is in N mode. In this mode, DJI FPV will automatically decelerate when it detects obstacles, but will not stop automatically.
4. To ensure safety during flight in M mode, it is advisable to have another person present to monitor the flight environment. To get a greater control experience when using M mode, loosen the F1 screw on the back of the thrust control stick (to the right if flying in mode 1, to the left if flying in mode 2) to disable re-centering.
5. The DJI FPV drone supports two video encoding formats, while the DJI FPV V2 headset only supports H.264.
6. In the Smooth mode at 810p / 120fps, the video transmission latency is less than 28ms, in the HD mode at 810p / 60fps, the video transmission latency is less than 40ms.
7. FCC Statement. Measurements performed in environments free of obstacles and interference. It is recommended to always fly your drone in sight unless otherwise permitted, and to abide by the local laws and regulations of the area you are flying over.
8. The maximum video transmission bit rate is 50 Mbps. Measured in an open environment, without obstacles or interference.
9. DJI Care Refresh (DJI FPV) is a service plan that gives you a sense of peace of mind during the flight. DJI Care Refresh (DJI FPV) provides replacements for a small additional cost. If you purchase DJI Care Refresh (2-year plan) you will have one year of extension on official coverage.
10. The DJI Virtual Flight app currently only supports iOS devices.
11. This feature will be available in future firmware updates. The images transmitted from the viewer to the app can be transmitted to the smartphone via cable (USB-C to USB-C or USB-C to lightning).
12. Fly Spot functionality is currently only available in China. All flight areas displayed on Fly Spots have been voluntarily shared by SkyPixel users. DJI does not collect or use data without the user's consent. Check and follow all local regulations before flying.

Technical specifications

Camera

  • Sensor "CMOS 1 / 2.3" Effective pixels: 12 million "
  • Lens "FOV: 150 ° - 35mm equivalent format: 14.66mm - Aperture: f / 2.8
  • Focus Mode: Fixed Focus <br>
  • Focus range: 0.6m to ∞ "
  • ISO 100-12800 camera
  • Shutter speed 1 / 50-1 / 8000s
  • Photo Modes Single Shot
  • Maximum image size 3840 × 2160
  • Photo format JPEG
  • Video resolution "4K: 3840 × 2160 at 50 / 60fps FHD: 1920 × 1080 at 50/60/100 / 120fps"
  • MP4 / MOV video format (H.264 / MPEG-4 AVC, H.265 / HEVC)
  • Max video bit-rate 120 Mbps
  • Standard color profile, D-Cinelike
  • RockSteady EIS Available
  • Distortion Correction Available
  • Supported file formats "exFAT (recommended) FAT32"


Stabilizer

  • Mechanical radius Tilt: from -65 ° to 70 °
  • Controllable Radius Tilt: -50 ° to 58 °
  • Single Axis Stabilization (Tilt), Electronic Roll Axis
  • Control speed max. 60 ° / s
  • Angular vibration range ± 0.01 ° (N mode)
  • Electronic Roll Axis Available (can stabilize footage when aircraft is tilted at angles greater than 10 °)

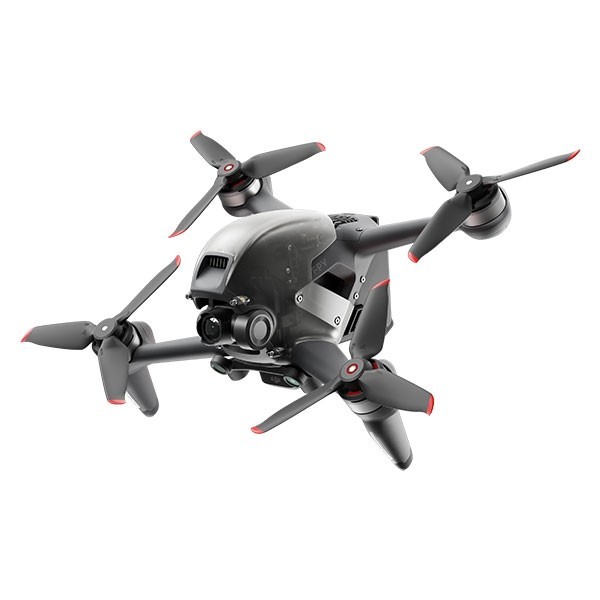

Aircraft

  • Take-off weight approx. 795 g
  • Dimensions "255 × 312 × 127 mm (with propellers) 178 × 232 × 127 mm (without propellers)"
  • Diagonal distance 245 mm
  • Maximum ascent speed M mode: No limits S mode: 15 m / s N mode: 8 m / s
  • Maximum descent speed M mode: No limits <br> S mode: 10 m / s <br> N mode: 5 m / s
  • Top speed "140 km / h
  • M mode: 39 m / s (27 m / s in Mainland China) - S mode: 27 m / s - N mode: 15 m / s "
  • Acceleration max. 0-100km / h: 2s (in ideal conditions when flying in M mode)
  • Maximum quota of tangency 6000 m
  • Flight autonomy approx. 20 minutes (measured in flight at 40 km / h, no wind)
  • Stationary flight autonomy approx. 16 min (measured in no wind conditions)
  • Maximum flight distance 16.8 km (measured in no-wind conditions)
  • Wind speed resistance 39-49 km / h (25-31 mph)
  • Operating temperature -10 ° to 40 ° C (14 ° - 104 ° F)
  • Transmitter Power (EIRP) "2.400-2.4835 GHz - FCC: ≤ 31.5dBm <br> CE: ≤ 20 dBm <br> SRRC: ≤ 20 dBm <br> MIC: ≤ 20 dBm 5.725-5.850 GHz FCC: ≤ 31 , 5 dBm CE: ≤ 14 dBm SRRC: ≤ 25.5 dBm "
  • Number of antennas Four GNSS GPS + GLONASS + GALILEO
  • Hover Accuracy "Vertical: ± 0.1m (with Vision Positioning) ± 0.5m (with GPS Positioning) Horizontal: ± 0.3m (with Vision Positioning) ± 1.5m (with GPS Positioning)"
  • Supported SD Cards microSD (up to 256GB)
  • Internal memory N / A
  • Sensor system Front "Accuracy measuring range: 0.5-18m <br>
  • Obstacle detection: Only available in N mode
  • FOV: 56 ° (horizontal), 71 ° (vertical) "
  • Lower sensor system (dual vision + TOF sensors) "Effective detection height: 10m - Parking range: 0.5-15m - Parking range with visual sensor: 0.5−30m"
  • Sensor System Bottom Auxiliary Light Single LED
  • Sensor system Operating environment "Refers to non-reflective surfaces with reflectivity> 20% (eg walls, trees, people)
  • Requires adequate light conditions (lux> 15 in normal light conditions); "


Battery charger

  • Input 100-240V, 50 / 60Hz, 1.8A
  • Output "Battery charging interface: 25.2V ± 0.1V 3.57A ± 0.1A (high current) <br> 1A ± 0.2A (low current) USB port: 5V / 2A (× 2) "
  • Nominal power 90W


Intelligent Flight Battery

  • Battery capacity 2000 mAh
  • Voltage 22.2V
  • Charging voltage (max.) 25.2 V
  • 6S LiPo Battery Type
  • Energy 44.4 Wh@0.5C
  • Standard 10C download interval <br>
  • Weight 295 g
  • Charging temperature 5 to 40 ° C (41 ° - 104 ° F)
  • Charging power (max.) 90 W


Video transmission

  • Operating frequency "2.400-2.4835 GHz 5.725-5.850 GHz"
  • Frequency band 40 MHz (Max.)
  • Live View Mode "Low Latency Mode: 810p / 120fps ≤ 28ms
  • High-Quality Mode: 810p / 60fps ≤ 40ms "
  • Max video bit-rate 50 Mbps
  • Transmission distance 10km (FCC), 6km (CE), 6km (SRRC), 6km (MIC)
  • Audio broadcast support Yes

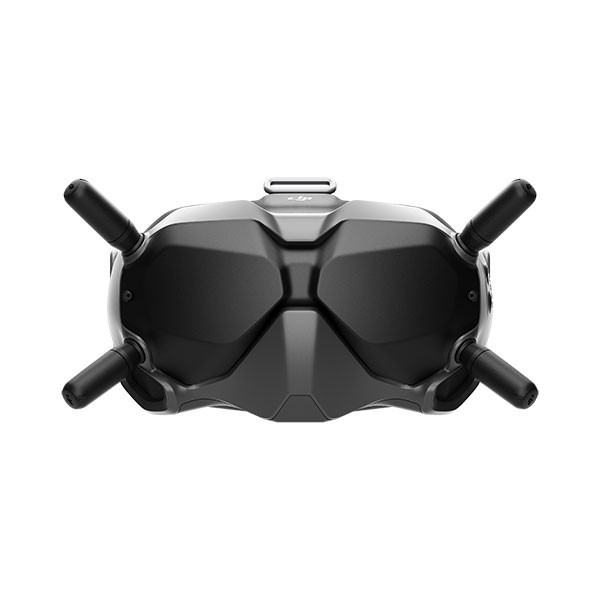

DJI FPV V2

  • Weight approx. 420 g (headband and antennas included)
  • Dimensions "184 × 122 × 110 mm (excluding antennas) 202 × 126 × 110 mm (including antennas)"
  • Screen size 2 ”× 2
  • 144 Hz screen refresh rate
  • Communication frequency "2.400-2.4835 GHz - 5.725-5.850 GHz"
  • Transmitter Power (EIRP) "2.400-2.4835 GHz FCC: ≤ 28.5 dBm <br> CE: ≤ 20 dBm <br> SRRC: ≤ 20 dBm <br> MIC: ≤ 20 dBm 5.725-5.850 GHz FCC: ≤ 31 , 5 dBm CE: ≤ 14 dBm SRRC: ≤ 19 dBm "
  • Frequency band 40 MHz (Max.)
  • Live View Mode "Low Latency Mode: 810p / 120fps ≤ 28ms * High-Quality Mode: 810p / 60fps ≤ 40ms * 150 ° FOV is available when recording at 50 0 100 fps. For other frame rates, FOV will be 142 ° . "
  • Max video bit-rate 50 Mbps
  • Transmission Distance <sup> [2] </sup> 10km (FCC), 6km (CE), 6km (SRRC), 6km (MIC)
  • MP4 video format (video format: H.264)
  • Supports Playback Audio and Video formats MP4, MOV, MKV (Video format: H.264; audio format: AAC-LC, AAC-HE, AC-3, MP3)
  • Operating temperature 0 ° - 40 ° C (32 ° - 104 ° F)
  • Betterie input power for DJI Goggles or other 11.1.-25.2V batteries.
  • FOV FOV: from 30 ° to 54 °; image size: 50-100%
  • Interpupillary distance range 58 - 70 mm
  • Supported MicroSD / SSD Cards microSD (up to 256GB)


DJI FPV viewer battery

  • 1800 mAh capacity
  • Voltage 9V (max)
  • LiPo 2S type
  • Energy 18 Wh
  • Charging temperature 0 ° - 45 ° C
  • Charging power (max.) 10 W
  • Battery life 110 min. (measured in an environment with a temperature of 25 ° C at a brightness level)

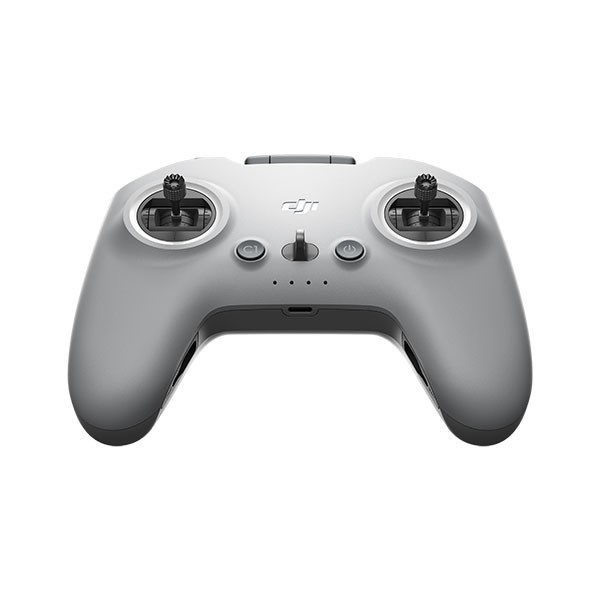

DJI FPV Remote Controller

  • Operating frequency "2.400-2.4835 GHz - 5.725-5.850 GHz"
  • Transmitter Power (EIRP) "2.400-2.4835 GHz FCC: ≤ 28.5 dBm <br> CE: ≤ 20 dBm <br> SRRC: ≤ 20 dBm MIC: ≤ 20 dBm 5.725-5.850 GHz FCC: ≤ 31.5 dBm CE: ≤ 14 dBm SRRC: ≤ 19 dBm "
  • Maximum Transmission Distance 10km (FCC), 6km (CE), 6km (SRRC), 6km (MIC)
  • Stabilizer dimensions 190 × 140 × 51 mm
  • Weight 346 g
  • Battery life Approximately 9 hours
  • Charging time 2.5 hours


Motion controller

  • FC7BMC model
  • Weight 167 g
  • Operating frequency 2.400-2.4835 GHz; 5.725-5.850 GHz
  • Maximum transmission distance (without obstacles or interference) 10 km (FCC); 6 km (CE / SRRC / MIC)
  • Transmitter Power (EIRP) "2.4 GHz: ≤28.5 dBm (FCC), ≤20 dBm (CE / SRRC / MIC) 5.8 GHz: ≤31.5 dBm (FCC), ≤19 dBm (SRRC ), ≤14 dBm (CE) "
  • Operating temperature range -10 ° - 40 ° C (14 ° - 104 ° F)
  • Battery life 300 minutes


MicroSD card
Supported MicroSD / SSD Cards "Max 256 GB UHS-I Speed Grade 3"
