SkyRc Charger E680 AC-DC LiPo 1-6s 10A 80W Maximize

SkyRc Charger E680 AC-DC LiPo 1-6s 10A 80W

SkyRc Charger E680 AC-DC LiPo 1-6s 10A 80W

More details

49,90€

SK100149

Availability: Available

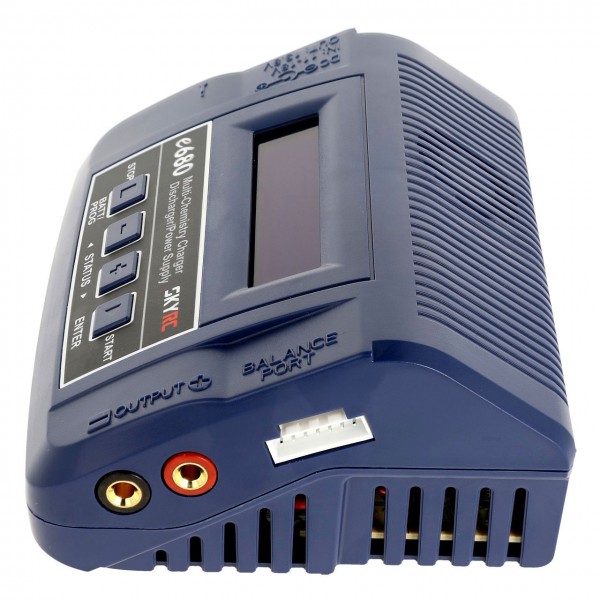

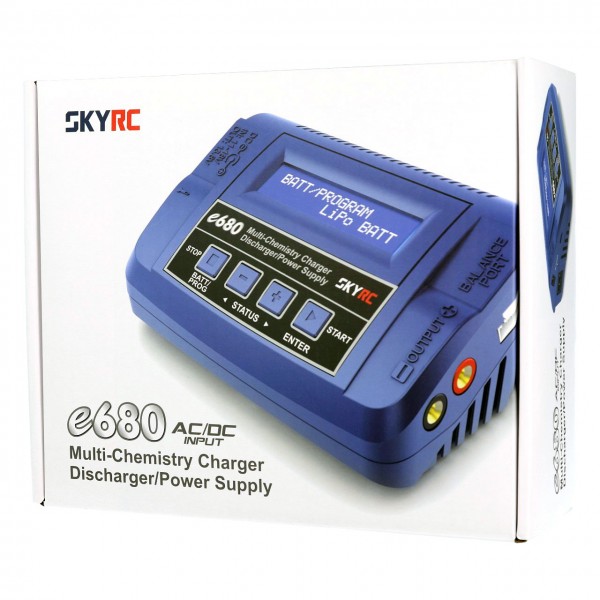

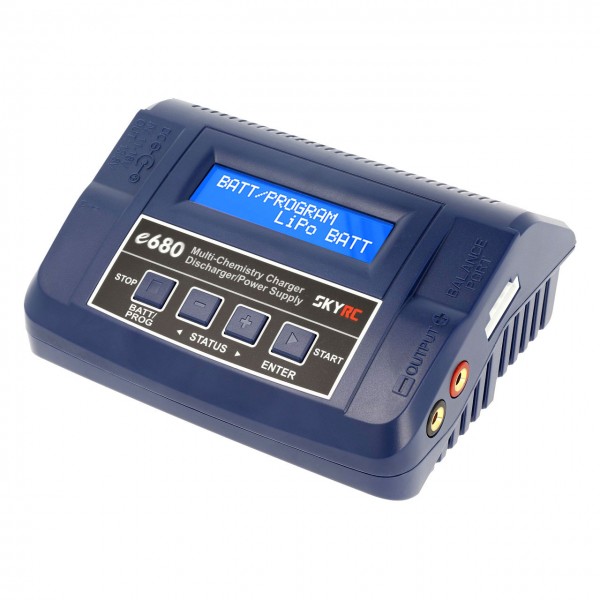

The SkyRC e680 Universal Charger is easy to use and at the same time offers a variety of features.

All popular battery types such as LiPo/LiIon/LiFe/LiHV/NiMH/NICd/Pb and the system battery of the DJI Mavic are supported by the microprocessor controlled SkyRC e680.

All common loading and unloading modes such as charge, ballance charge, fast charge, storage and discharge are mastered. Especially in the Pb program, the charger offers an AGM and cold charging mode. Also DJI Mavic batteries are supported with their own mode (optional charging cable SK600023-06 necessary).

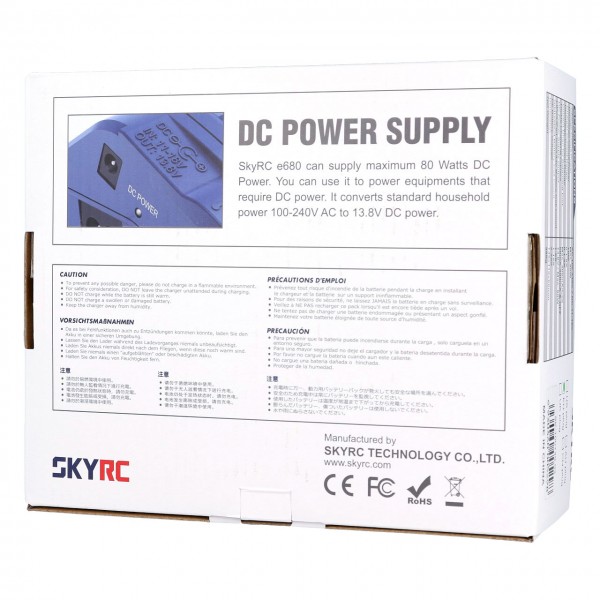

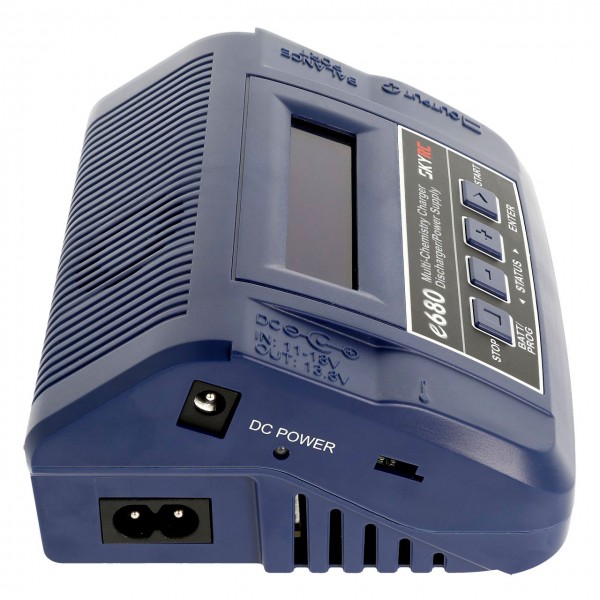

In addition, the e680 can directly supply consumers such as tire sander, LED pit lights, motor testers etc. with 13.8V and 80W max power via the power supply function.

Features:

  • Excellent performance data max. 8A / 80W
  • Integrated power supply functionn 13.8V/80W
  • 10 battery memory
  • TVC Terminal Voltage Control
  • Internal balancer with XH connector
  • Simplest 4-key operation
  • AGM and Pb cold charging modes
  • Suitable for LiPo/LiHV/Lilon/LiFe/NiCd/NiMH/Pb und DJI Mavic batteries

Technical Specifications:

Input Voltage AC:100V -240V
Input Voltage DC:11V - 18V
Max Charge Power:80W
Max Discharge Power:10W
Charge Current Range:0.1A - 8.0A
Discharge Current Range:0.1A - 2.0A
Balancer current:max. 300mAh
Cells: LiPo/LiFe/LiIon/LiHV1s - 6s
Cells: NiMH/NiCd1s - 15s
Pb Battery Voltage: 2V - 20V
Weight:390g
Dimension:135x110x60mm

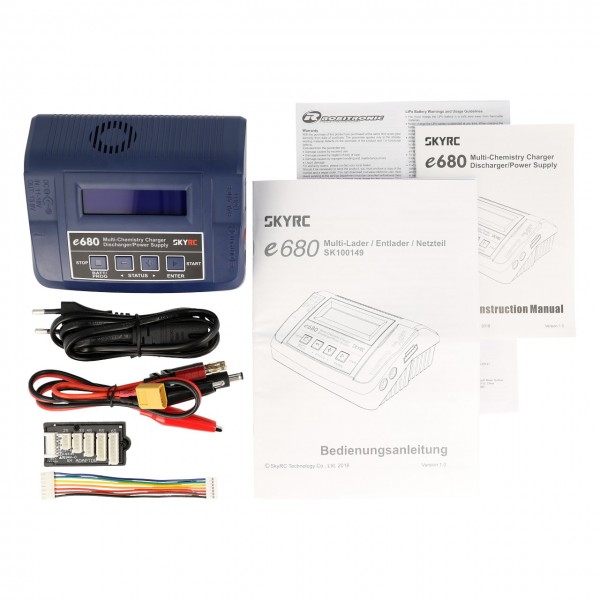

Scope of delivery:

1x e680 charger
1x Power cable
1x Charging cable XT60
1x Connecting cable DC input
1x Balancer board XH
1x Manual
