Dragon Hammer VOLTZ PNP 1/5 Kit 8S 2 x 70kg Servos Maximize

Dragon Hammer VOLTZ PNP 1/5 Kit 8S 2 x 70kg Servos

Dragon Hammer VOLTZ PNP 1/5 Scale Kit Electric 8S 2x70kg Servos

More details

FIDDHVOLTZ-PNP

Add to cart

You can purchase this product in installments with Consel. Click here for more information.

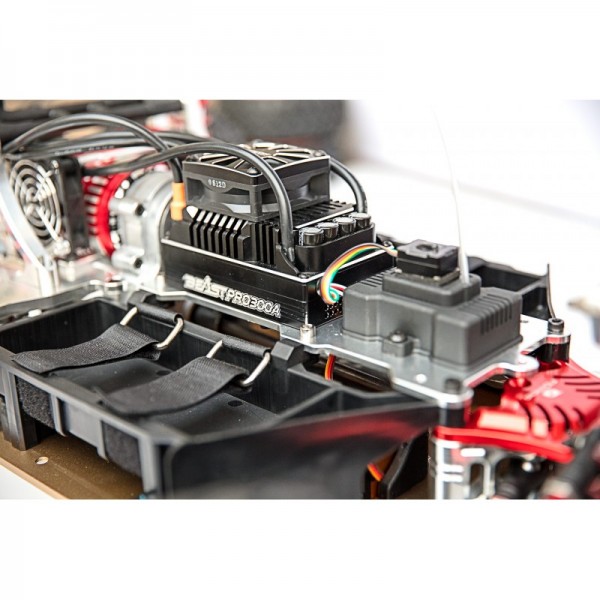

Fid Racing Dragon Hammer VOLTZ kit 1/5 01


Large scale truck platform equiped with motor, ESC and two high torque steering servos.

Add your transmitter and your receiver, and batteries and you are ready to cross the hardest terrains.


Specification:

  • Wheelbase:620mm
  • Front tire track:560mm
  • Rear tire track:550mm
  • Max speed:90km/h (8S)
  • Main chassis: 5mm 6061-T6
  • Esc Power Rating 300A: 8S Lipo
  • The main chassis height: 120mm
  • Servo Steering Power : 140kg (2x 70kg servos)
  • Battery box size: 190x75mm
  • Mud Terrain Tyres: 230x85mm

VoltZ Main Chassis:

  • 5mm Thick Milled Alloy Chassis 6061-T6
  • Dual Steering Servo Set-Up 2x 70kg servos (140kg Combined)
  • Independent Front Shock Absorbers
  • Large Capacity Shock Absorebers: 235mm Rear 185.5mm Front
  • 7mm Thick Shock Shafts
  • Four Link Rear Trailing Arm Suspension System
  • Billet Alloy CNC Machined Rear Axle
  • Billet Alloy CNC Machined Trailing Arms
  • Billet Alloy Upper Four Link Ends With Rose Joint Ends
  • Billet Alloy Fourlink chassis mounts
  • Front/Middle/Rear Differentials, With Billet Alloy Diff Cases
  • Rear Mounted 74/120 Brushless Motor
  • 8S 300A ESC & Brushless Motor System
  • High Capacity Battery Box (8S /12S Lipo Battery Capability)


Voltz Electrical System :

  • ZTW 300A ESC,
  • Motor:680KV 34000 Max RPM,74/120 Brushless motor
  • 8S Lipo Battery Capability
  • Built in Cooling System
  • ESC fixing plate(3MM) :reserve insert position for hobbywing 200A ESC



Dragon hammer Voltz 4WD drive System

  • Internal rear drive shafts,12mm
  • Helical cut front & rear differential crown & pinion gears
  • Rear Telescopic Centre CVD Driveshaft,25mm External
  • Front Telescopic CVD Driveshaft,20mm external
  • Middle differential réversible System


Body shell

  • CLEAR, With 2 Full Livery Sticker Sheets

Data sheet

  • Manufacturer : FID Racing

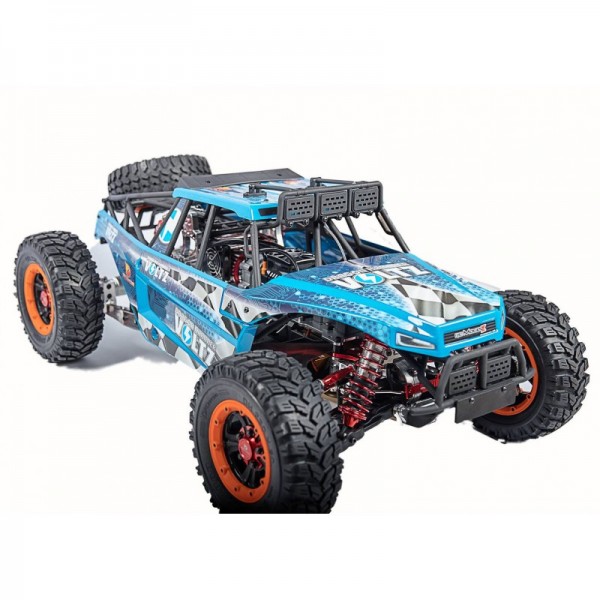

Fid Racing Dragon Hammer VOLTZ kit 1/5 02

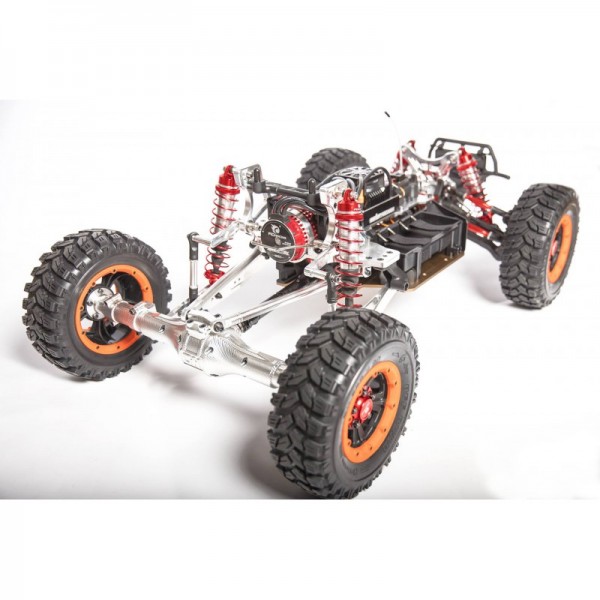

Fid Racing Dragon Hammer VOLTZ kit 1/5 03

Fid Racing Dragon Hammer VOLTZ kit 1/5 04
