Hobbywing Kit Quicrun Fusion Brushless System Kit 1800 Kv 540 Scaler Crawler Maximize

Hobbywing Kit Quicrun Fusion Brushless System Kit 1800 Kv 540 Scaler Crawler

Hobbywing Quicrun Fusion Brushless System Program Card Kit 1800 Kv 540 Scaler Crawler

More details

189,00€

p HW30120401

Availability: Available

You can purchase this product in installments with Consel. Click here for more information.


Description:

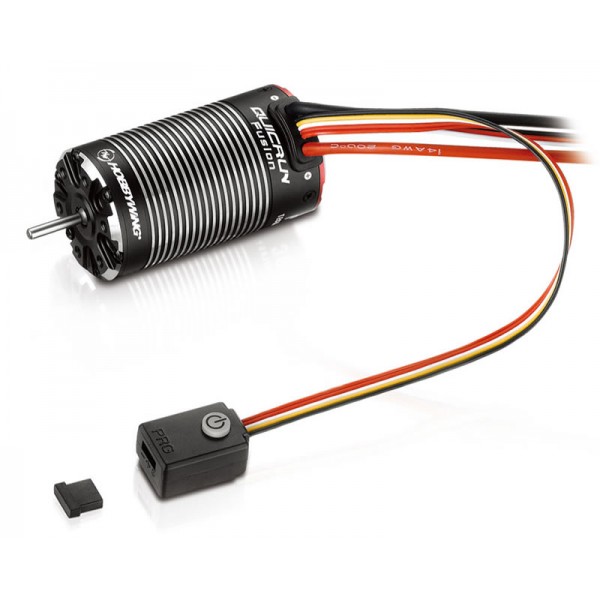

QuicRun Fusion Brushless System for Crawler / Scaler 540 Spec
This brushless system is composed of a motor + ESC, but the overall dimensions are that of the 540 brushless motor only, the total weight is 201gr, it is the ideal solution for converting most scalers into brushless in the simplest way, solving problems. of space and cabling even in scalers with internal space problems.

Intelligent Torque Output ...
Intelligent torque and speed management system means that the QuicRun Fusion System maintains the torque value stable at all speeds even with varying rpm, ascent descent, under stress, the Intelligent Torque Output Control system makes these operations extremely simple.

FOC (Fiel-Oriented-Control)
The QuicRun Fusion system uses the FOC technology that allows a very high torque at already very low speed, the engine runs smoothly already at an extremely low number of revolutions, moreover the engine is extremely quiet, and also improves the driving characteristics of the model .

IP67
The Fusion kit is IP67 waterprof, has excellent protection against water, dust, mud and snow.

High Energy Efficiency
Brushless systems have a higher energy efficiency than Brushed systems, lower motor heating, and therefore lower battery consumption after part of use, moreover the motor is quieter and more precise.

Professional Drag Brake
The 8-level Drag Brake Force adjustment and 9 Drag Brake Rate levels allow infinite adjustments for all models and needs. The maximum Drag Brake value is almost double that obtainable with the other brushless systems of the same size, this allows the model to be parked even with very high inclinations.

Electronic Switch
The system is equipped with an electronic switch, which compared to traditional mechanical switches does not cause operating problems with dust and dirt is much more reliable as it has no mechanical parts that can break or give false contacts, it does not turn off in case of strong impacts of the model.

Technical data:

  • Application: 1 / 10th Rock Crawler
  • Current: A.40A / 160A
  • Power Supply Voltage: 2-3S Lipo / 6-9 Cell NiMH
  • BEC voltage: 6V / 7.4V 4A. adjustable
  • Brushless Motor: 1800KV
  • Measurements: Diameter 36mm Length 64mm
  • Motor Shaft Measurements: Diameter 3.175mm / 16mm
  • Motor type: 4 Poles
  • Power Wiring: Red-14AWG-200mmx1 / Black-14AWG-200mmx1
  • Power Connector: XT60
  • Weight: 201g (including wiring)


Programming System
SET Button on ESC: NO
LED Program box: YES (HW30501003) included in the kit
LCD program Box: NO
WiFi Module: NO
Program connection: Through port present on the switch
Firmware upgrade: NO

Manual in Italian
The Hobbywing products sold by our distribution contain the instruction manual in Italian and comply with the sales regulations of the national market.
