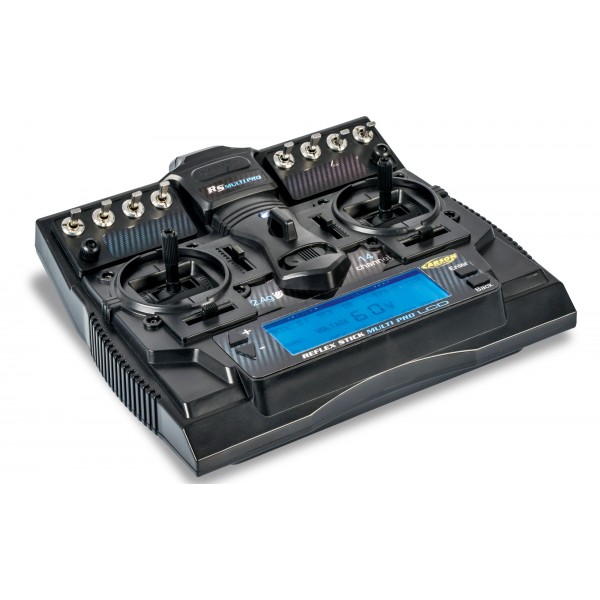

Carson Reflex Stick Multi Pro LCD 14Ch

Reflex Stick Multi Pro LCD - Professional, modern and technically high-quality 14-channel remote control system with 15 model memories for universal use in many RC vehicles and skis. Independently 14 channels can be controlled via 2 joysticks and 10 switches (4x push-button / 4x step switch / 2x rotary potentiometer), for example functions like light / sound, horn, winch, support columns, water pump and fire monitor. The REFLEX STICK Multi Pro 14 Channel LCD System is fully compatible with TAMIYA's MFC 01/03 and DMD units.

Delivery:
14 channel 2.4 GHz transmitter, 14 channel 2.4 GHz receiver and multilingual manual.

Required accessories:
4x AA Batteries

Recommended accessories (ask to us):
500503060 Reflex 6 / 14Ch Switch 2 (2x2.5A, max 16V)
500503061 Reflex 6 / 14Ch Switch 4 (4x2.5A, max 16V)
500503062 Reflex Switch 2/4 Power distributor
500606073 Plug-in charger
500501544 receiver
500609042 Mignon battery pack (AA)

Technical specifications:
• Operating voltage transmitter 4.8 - 6 V (4 AA cells)
• 2.4G FHSS system (Frequency Hopping Spread Spectrum)
• 2.4G servo reverse (direction reversal) and trimming function for channels
• 4x pushbutton ON / OFF / ON, 4x switch ON / OFF / ON, 2x rotary potentiometer
• Power supply for the receiver 4.8 - 6 V
• Plug system Graupner J / R
• Dual Rate Channel 1-4 (travel limitation of the servos)
• EPA channel 1-4 (servo path limitation)
• EXP Function Channel 1-4 (Exponential)
• Failsafe function

Technical details:
- 14 controllable channels
- 15 model memories
- Including charging socket
- 100% compatible with TAMIYA MFC 01/03 and DMD unit
- Blue illuminated LC display
