Castle Sidewinder 3 Esc + Motore 1406-4600kv Sensored Waterproof 1:10 3S 12V COMBO Vedi a schermo intero

Castle Sidewinder 3 Esc + Motore 1406-4600kv Sensored Waterproof 1:10 3S 12V COMBO

Castle Sidewinder 3 ES + Motore 1406-4600kv Sensored Waterproof 1:10 3S 12V COMBO

Maggiori dettagli

125,00€

CC-010-0115-05

Disponibilità: Disponibile


Sidewinder 3 con motore brushless sensored 1406-4600Kv è la combinazione perfetta ** impermeabile per modelli scala 1:10 fuoristrada, su strada e rock crawler fino a 3S LiPo ***. Dispone di circuiti aggiornati per tempi di risposta più rapidi e maggiore affidabilità. Questa combo ora viene fornita con il nostro nuovo motore sensored *. Mentre le capacità sensored del motore non possono essere utilizzate con Sidewinder 3, gli utenti beneficeranno del fatto che il motore sensored è ricostruibile (parti disponibili a breve) e questo design consente persino ai modellisti di sostituire i cavi del motore danneggiati. Il Sidewinder 3 Combo ti darà una risposta eccezionale e prestazioni eccezionali!

Questa combinazione include un ESC Sidewinder 3 e un motore sensored * 1406-4600Kv. Il motore 1406-4600kv è un ottimo motore per modelli a 2 ruote motrici su 2S LiPo. È un'ottima combinazione per Stadium Trucks 1/10 2WD e buggy . Un ottimo upgrade per auto da strada scala 1/10 per uso 2s e 3s. NON è adatto all'uso con modelli fuoristrada 4wd.

Si prega di fare riferimento al nostro Gearing Chart per il motore, la batteria e il cambio consigliati per alcuni dei veicoli più popolari sul mercato.

  •     Impermeabile: sì
  •     Capacità di telemetria: no
  •     Registrazione dati: no
  •     Cavo ausiliario: no
  •     Tensione di ingresso minima: 2S
  •     Tensione di ingresso massima: 3S
  •     Sensored Capable: No

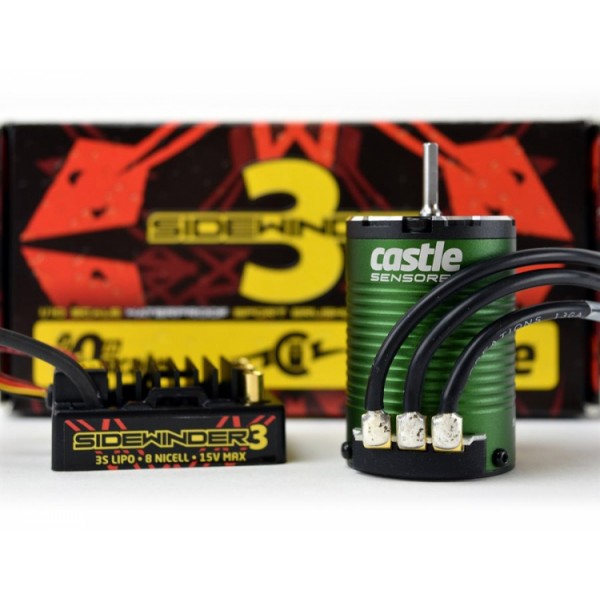

La Combo Sidewinder 3 include:
  •     Sidewinder 3 ESC
  •     Motore 1406 4600 Kv sensored *
  •     Guida all'avviamento del guidatore e della guida
  •     Tabella ingranaggi 1/10 della scala
  •     Foglio decal

* Le capacità sensored del motore non possono essere utilizzate con Sidewinder 3. Se si vuole usare tutte le capacità del motore sensored, è necessario un ESC sensored come Mamba X.

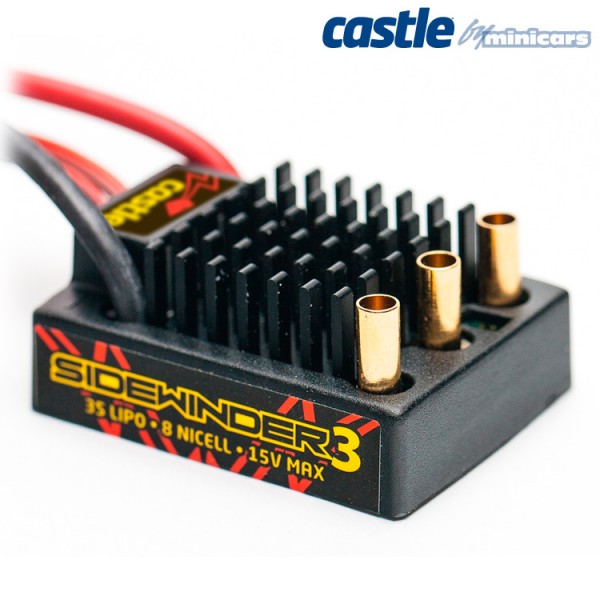

Technical Specs SV3 Controller:
  • Input Voltage Range: 2s - 3s LiPo; 6 - 8 cell NiMH
  • BEC Specifications: 5.0 volts fixed, 2 amps
  • Operating Environment: Waterproof* design allows for use in nearly any environment
  • Brake: Proportional
  • Reversible: Yes, but may be disabled for racing
  • On/Off Switch: Yes
  • Cooling Fan: Available, but not included
  • ESC Size: L49 x W38 x H20 mm
  • ESC Weight (w/wires): 55.5 g)
  • Connectors: 4 mm female bullets for motor connection
  • Items Needed for Operation: Battery Connector required; Castle 4 mm polarized connectors, T-Plug or Traxxas Power Connector recommended
  • Product Use Statements: *Although Sidewinder 3 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
  • Application Guidelines: For 2WD short course trucks on 2s LiPo and geared conservatively. 1/10th 2WD Stadium trucks and buggies on 2s for bashing and limited runs on 3s with conservative gearing. Great for 1/10th scale on-road cars for 2s and 3s use. NOT for use in 4WD short course trucks.
  • Please refer to our Gearing Chart for recommended motor, battery and gearing for some of the more popular vehicles on the market.
  • Recommended Motors: This Combo includes a Castle 1406-5700kv motor
  • Max. Recommended Vehicle Weight: No more than 2.26 kg with battery, ready-to-run.
  • Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.
  • Telemetry Link Capable: No
  • Tech Notes: Not all LiPos are created equal, and surge ratings should never be used to determine a pack’s suitability for a brushless application. Use the CONTINUOUS C rating only. Brushless setups frequently hit 100+ amps in peaks. We strongly suggest using 5,000 mAh or larger LiPo cells with a discharge rating of at least 30C (or high quality 25C batteries such as Traxxas® Power Cells®). Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.

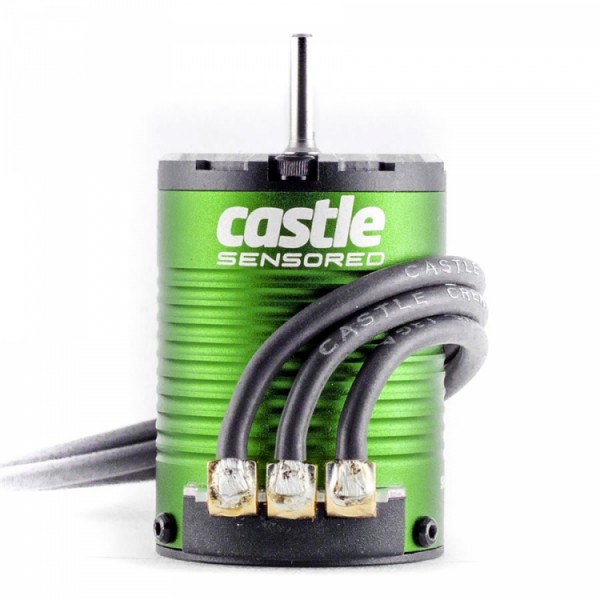

Motor Technical Specs:
  • Input Voltage Range: 2-3S LiPo
  • Kv: 4600
  • Max. RPM: 100,000
  • Size: L49.5 x D36 mm
  • Weight (w/wires): 197 g
  • Shaft Length: 15 mm
  • Shaft Diameter: 1/8" (3.17 mm)
  • Mounting Hole Specifications: M3 @ 25mm
  • Cooling Fan: Optional, coming soon!
  • Connectors: 4 mm male Castle Bullet Connectors
  • Application Guidelines: For 2WD short course trucks on 2s LiPo and geared conservatively. 1/10th 2WD Stadium trucks and buggies on 2s for bashing and limited runs on 3s with conservative gearing. Great for 1/10th scale on-road cars for 2s and 3s use. NOT for use in 4WD short course trucks.
  • Please refer to our Gearing Chart for recommended motor, battery and gearing for some of the more popular vehicles on the market.
  • Max. Recommended Vehicle Weight: 2.26 kg

Motor Tech Notes:
  • Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
  • Water Resistant Design: Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.

**Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

***Brushed motors are recommended for rock crawlers (vehicles traveling 3-5mph.) Brushless motors are fine for use with rock racing. If your vehicle is going to be in a bound up situation, very slowly traversing rocks and obstacles, you are running a rock crawler. If you are constantly traveling at 5mph or higher, you have a rock racer.
